[esp-idf] idf.py 사용법 (build,flash,monitor,create-project,....., )
하니_즐거운하루
2023. 11. 30. 16:24
: idf.py 는 파이션 프로그램으로 프로젝트에 대한 빌드/다운로드/모니터링 ....등을 명령창에서 할수 있는 유틸로 파일위치는 esp-idf/tools/ 아래에 있습니다.
사용법만 한번 정리해 봤습니다.
목차
▶ ubuntu 상에서 esp-idf 환경설정
: esp-idf 설치폴더의 export.sh 파일을 실행해 줍니다.
$ source path/to/your/direcotory/export.sh
< idf.py 사용법>
▶build
↓ build
: 현재 디렉토리안의 프로젝트 빌드
더보기
xxx@ubuntu22:~/Project/esp32/myApp1$ idf.py build
Setting IDF_PATH environment variable: /home/xxx/esp/esp-idf
Executing action: all (aliases: build)
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja all"...
[1/4] cd /home/xxx/Project/esp32/myApp1/build/app1.bin
app1.bin binary size 0xe2160 bytes.
Smallest app partition is 0x100000 bytes. 0x1dea0 bytes (12%) free.
[1/1] cd /home/xxx/Project/esp32/myApp1/build/bootloader/bootloader.bin
Bootloader binary size 0x5310 bytes. 0x2cf0 bytes (35%) free.
Project build complete. To flash, run this command:
/home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python
../../../esp/esp-idf/components/esptool_py/esptool/esptool.py
-p (PORT)
-b 460800
--before default_reset
--after hard_reset
--chip esp32c6 write_flash
--flash_mode dio
--flash_size 2MB
--flash_freq 80m 0x0 build/bootloader/bootloader.bin
0x8000 build/partition_table/partition-table.bin
0x10000 build/app1.bin
or run 'idf.py -p (PORT) flash'
↓ build -C Project/esp32/myApp1/
: 지정된 프로젝트 경로 지정해 빌드하기
더보기
~$ idf.py build -C Project/esp32/myApp1/
Executing action: all (aliases: build)
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja all"...
[1/4] cd /home/xxx/Project/esp32/myApp1/myApp1/build/myApp1.bin
binary size 0xf5920 bytes.
Smallest app partition is 0x180000 bytes. 0x8a6e0 bytes (36%) free.
[1/1] cd /home/xxx/Project/esp32/myApp1/build/bootloader/bootloader.bin
Bootloader binary size 0x5340 bytes.
0x2cc0 bytes (35%) free.
Project build complete. To flash, run this command:
/home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python
esp/esp-idf/components/esptool_py/esptool/esptool.py
-p /dev/ttyACM0 -b 460800
--before default_reset --after hard_reset --chip esp32c6
write_flash --flash_mode dio --flash_size 4MB
--flash_freq 80m 0x0 Project/esp32/myApp1/build/bootloader/bootloader.bin 0x8000
Project/esp32/myApp1/build/partition_table/partition-table.bin 0x10000
Project/esp32/myApp1/build/myApp1.bin
or run 'idf.py -p /dev/ttyACM0 flash'
▶ clean
: build 디렉토리 지우기
더보기
$ idf.py clean
Executing action: clean
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja clean"...
[0/1] Re-running CMake...
-- Building ESP-IDF components for target esp32c6
-- Project sdkconfig file /home/xxx/Project/esp32/myApp1/sdkconfig
Loading defaults file /home/xxx/Project/esp32/myApp1/sdkconfig.defaults...
-- App "myApp1" version: 94c0e67-dirty
-- Adding linker script /home/xxx/Project/esp32/myApp1/build/esp-idf/esp_system/ld/memory.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_system/ld/esp32c6/sections.ld.in
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.api.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.rvfp.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.newlib.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.version.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.phy.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.coexist.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.net80211.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.pp.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.wdt.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.newlib-normal.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.heap.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/soc/esp32c6/ld/esp32c6.peripherals.ld
-- Components: app_trace app_update bootloader bootloader_support bt cmock console cxx
driver efuse esp-tls esp_adc esp_app_format esp_coex esp_common esp_eth
esp_event esp_gdbstub esp_hid esp_http_client esp_http_server
esp_https_ota esp_https_server esp_hw_support esp_lcd esp_local_ctrl
esp_mm esp_netif esp_netif_stack esp_partition esp_phy esp_pm esp_psram
esp_ringbuf esp_rom esp_system esp_timer esp_wifi espcoredump esptool_py
fatfs freertos hal heap http_parser idf_test ieee802154 json log lwip
main mbedtls mqtt newlib nvs_flash openthread partition_table protobuf-c
protocomm pthread riscv sdmmc soc spi_flash spiffs tcp_transport ulp unity
usb vfs wear_levelling wifi_provisioning wpa_supplicant
-- Component paths: /home/xxx/esp/esp-idf/components/app_trace
/home/xxx/esp/esp-idf/components/app_update
/home/xxx/esp/esp-idf/components/bootloader
/home/xxx/esp/esp-idf/components/bootloader_support
/home/xxx/esp/esp-idf/components/bt
/home/xxx/esp/esp-idf/components/cmock
/home/xxx/esp/esp-idf/components/console
/home/xxx/esp/esp-idf/components/cxx
/home/xxx/esp/esp-idf/components/driver
/home/xxx/esp/esp-idf/components/efuse
/home/xxx/esp/esp-idf/components/esp-tls
/home/xxx/esp/esp-idf/components/esp_adc
/home/xxx/esp/esp-idf/components/esp_app_format
/home/xxx/esp/esp-idf/components/esp_coex
/home/xxx/esp/esp-idf/components/esp_common
/home/xxx/esp/esp-idf/components/esp_eth
/home/xxx/esp/esp-idf/components/esp_event
/home/xxx/esp/esp-idf/components/esp_gdbstub
/home/xxx/esp/esp-idf/components/esp_hid
/home/xxx/esp/esp-idf/components/esp_http_client
/home/xxx/esp/esp-idf/components/esp_http_server
/home/xxx/esp/esp-idf/components/esp_https_ota
/home/xxx/esp/esp-idf/components/esp_https_server
/home/xxx/esp/esp-idf/components/esp_hw_support
/home/xxx/esp/esp-idf/components/esp_lcd
/home/xxx/esp/esp-idf/components/esp_local_ctrl
/home/xxx/esp/esp-idf/components/esp_mm
/home/xxx/esp/esp-idf/components/esp_netif
home/xxx/esp/esp-idf/components/esp_netif_stack
/home/xxx/esp/esp-idf/components/esp_partition
/home/xxx/esp/esp-idf/components/esp_phy
/home/xxx/esp/esp-idf/components/esp_pm
/home/xxx/esp/esp-idf/components/esp_psram
/home/xxx/esp/esp-idf/components/esp_ringbuf
/home/xxx/esp/esp-idf/components/esp_rom
/home/xxx/esp/esp-idf/components/esp_system
/home/xxx/esp/esp-idf/components/esp_timer /
home/xxx/esp/esp-idf/components/esp_wifi
/home/xxx/esp/esp-idf/components/espcoredump
/home/xxx/esp/esp-idf/components/esptool_py
/home/xxx/esp/esp-idf/components/fatfs
/home/xxx/esp/esp-idf/components/freertos
~~ 중략 ~~
-- Configuring done
-- Generating done
-- Build files have been written to: /home/xxx/Project/esp32/myApp1/build
[1/2] Cleaning additional files...
[2/2] Cleaning all built files...
Cleaning... 0 files.
Done
▶ create-project
: 프로젝트를 새로 만들때 사용 > 프로젝트 루트로 이동후 다음 처럼 사용
더보기
$ idf.py create-project --help
Usage: idf.py create-project [OPTIONS] NAME
Create a new project with the name NAME specified as argument. For example: `idf.py create-project new_proj` will create a new
project in subdirectory called `new_proj` of the current working directory. For specifying the new project's path, use either the
option --path for specifying the destination directory, or the global option -C if the project should be created as a
subdirectory of the specified directory. If the target path does not exist it will be created. If the target folder is not empty
then the operation will fail with return code 3. If the target path is not a folder, the script will fail with return code 4.
After the execution idf.py terminates so this operation should be used alone.
Options:
-C, --project-dir PATH Project directory.
-p, --path TEXT Set the path for the new project. The project will be created directly in the given folder if it does not
contain anything
--help Show this message and exit.
$ idf.py create-project hello_world
Executing action: create-project
The project was created in /home/xxx/Project/hello_world
$ tree hello_world/
hello_world/
├── CMakeLists.txt
└── main
├── CMakeLists.txt
└── hello_world.c
>> test 디렉토리 안에 프로젝트 생성시
$ idf.py create-project --path "/home/xxx/Project/test" hello_world2
Executing action: create-project
The project was created in /home/xxx/Project/test
~/Project/test$ tree
.
├── CMakeLists.txt
└── main
├── CMakeLists.txt
└── hello_world2.c
1 directory, 3 files
>> -C 옵션 사용하기
$ idf.py create-project -C /home/xxx/Project/hello_world2 hello_world2
Executing action: create-project
The project was created in /home/xxx/Project/hello_world2/hello_world2> hello_world 디렉토리 생성후 4개의 디렉토리 또는 파일이 생성됩니다.
▶ create-component
: 프로젝트 만든후 프로젝트 디렉토리 안에 컴포넌트를 추가시 사용
더보기
>> hello_world 프로젝트 안으로 이동후 create-component 명령을 이용 sub_com2 생성하기
:~/Project/hello_world$ idf.py create-component sub_com2
Executing action: create-component
The component was created in /home/xxx/Project/hello_world/sub_com2
~/Project/hello_world$ tree
.
├── CMakeLists.txt
├── main
│ ├── CMakeLists.txt
│ └── hello_world.c
└── sub_com2
├── CMakeLists.txt
├── include
│ └── sub_com2.h
└── sub_com2.c
3 directories, 6 files
>> sub_com2 디렉토리만 추가되고 다른 파일은 수정사항 없음
▶ flash
↓ flash -p /dev/ttyACM0
: 지정된포트를 통해 타겟장치에 이미지를 다운로드 합니다. (bootloader + application + partitiontable)
> 각각만 flash 할려면
app-flash , bootloader-flash , partition-table-flash 명령을 사용합니다.
더보기
xxx@ubuntu22:~/Project/esp32/myApp1$ idf.py -p /dev/ttyACM0 flash
Setting IDF_PATH environment variable: /home/xxx/esp/esp-idf
Executing action: flash
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja flash"...
[1/5] cd /home/xxx/Project/esp32/myApp1/build/esp-idf/esptool_py
&& /home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python
/home/xxx/esp/esp-idf/components/partition_table/check_sizes.py
--offset 0x8000 partition
--type app /home/xxx/Project/esp32/myApp1/build/partition_table/partition-table.bin
/home/xxx/Project/esp32/myApp1/build/myApp1.bin
myApp1.bin binary size 0xe2160 bytes.
Smallest app partition is 0x100000 bytes. 0x1dea0 bytes (12%) free.
[2/5] Performing build step for 'bootloader'
[1/1] cd /home/xxx/Project/esp32/myApp1/build/bootloader/esp-idf/esptool_py
&& /home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python
/home/xxx/esp/esp-idf/components/partition_table/check_sizes.py
--offset 0x8000 bootloader
0x0 /home/xxx/Project/esp32/myApp1/build/bootloader/bootloader.bin
Bootloader binary size 0x5310 bytes. 0x2cf0 bytes (35%) free.
[2/3] cd /home/xxx/esp/esp-idf/components/esptool_py
&& /usr/bin/cmake
-D IDF_PATH=/home/xxx/esp/esp-idf
-D "SERIAL_TOOL=/home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python;;
/home/xxx/esp/esp-idf/components/esptool_py/esptool/esptool.py;
--chip;esp32c6"
-D "SERIAL_TOOL_ARGS=--before=default_reset;
--after=hard_reset;write_flash;@flash_args"
-D WORKING_DIRECTORY=/home/xxx/Project/esp32/myApp1/build
-P /home/xxx/esp/esp-idf/components/esptool_py/run_serial_tool.cmake
esptool.py --chip esp32c6 -p /dev/ttyACM0
-b 460800
--before=default_reset
--after=hard_reset write_flash
--flash_mode dio
--flash_freq 80m
--flash_size 2MB 0x0 bootloader/bootloader.bin
0x10000 myApp1.bin
0x8000 partition_table/partition-table.bin
esptool.py v4.7.dev2
Serial port /dev/ttyACM0
Connecting...
Chip is ESP32-C6FH4 (QFN32) (revision v0.0)
Features: WiFi 6, BT 5, IEEE802.15.4
Crystal is 40MHz
MAC: 40:4c:ca:ff:fe:43:15:18
BASE MAC: 40:4c:ca:43:15:18
MAC_EXT: ff:fe
Uploading stub...
Running stub...
Stub running...
Changing baud rate to 460800
Changed.
Configuring flash size...
Flash will be erased from 0x00000000 to 0x00005fff...
Flash will be erased from 0x00010000 to 0x000f2fff...
Flash will be erased from 0x00008000 to 0x00008fff...
Compressed 21264 bytes to 12898...
Writing at 0x00000000... (100 %)
Wrote 21264 bytes (12898 compressed) at 0x00000000 in 0.3 seconds (effective 590.1 kbit/s)...
Hash of data verified.
Compressed 926048 bytes to 496607...
Writing at 0x00010000... (3 %)
Writing at 0x0001d3f3... (6 %)
Writing at 0x0002b35a... (9 %)
Writing at 0x00033456... (12 %)
Writing at 0x00038eab... (16 %)
Writing at 0x0003fe71... (19 %)
Writing at 0x00046c90... (22 %)
Writing at 0x0004e67d... (25 %)
Writing at 0x00055d8c... (29 %)
Writing at 0x0005deec... (32 %)
Writing at 0x0006538a... (35 %)
Writing at 0x0006c67d... (38 %)
Writing at 0x000736c7... (41 %)
Writing at 0x0007bb38... (45 %)
Writing at 0x00083cea... (48 %)
Writing at 0x0008c882... (51 %)
Writing at 0x00093e4a... (54 %)
Writing at 0x0009b4fb... (58 %)
Writing at 0x000a2802... (61 %)
Writing at 0x000a898c... (64 %)
Writing at 0x000ae9ca... (67 %)
Writing at 0x000b4c77... (70 %)
Writing at 0x000baf1d... (74 %)
Writing at 0x000c0c30... (77 %)
Writing at 0x000c76a4... (80 %)
Writing at 0x000cf186... (83 %)
Writing at 0x000d5776... (87 %)
Writing at 0x000dbbee... (90 %)
Writing at 0x000e1b0d... (93 %)
Writing at 0x000e8365... (96 %)
Writing at 0x000ef467... (100 %)
Wrote 926048 bytes (496607 compressed) at 0x00010000 in 6.4 seconds (effective 1154.8 kbit/s)...
Hash of data verified.
Compressed 3072 bytes to 103...
Writing at 0x00008000... (100 %)
Wrote 3072 bytes (103 compressed) at 0x00008000 in 0.0 seconds (effective 590.0 kbit/s)...
Hash of data verified.
Leaving...
Hard resetting via RTS pin...
Done
xxx@ubuntu22:~/Project/esp32/myApp1$↓ flash
: port 설정이 없으면 ESPPORT 변수의 값을 찾아서 하고 , ESPPORT 변수가 없을경우
Serial port를 순차대로 검색 합니다.
아래 명령은 ESPPORT 변수 설정이 되어 있는상태의 flash 명령 사용 예제 입니다.
$ export ESPPORT=/dev/ttyACM0
$ idf.py flash
~~ 중략 ~~
esptool.py v4.7.dev2
Serial port /dev/ttyACM0
~~ 중략 ~~
Wrote 966016 bytes (518851 compressed) at 0x00010000 in 6.8 seconds (effective 1136.4 kbit/s)...
Hash of data verified.
Compressed 3072 bytes to 103...
Writing at 0x00008000... (100 %)
Wrote 3072 bytes (103 compressed) at 0x00008000 in 0.0 seconds (effective 709.9 kbit/s)...
Hash of data verified.
Leaving...
Hard resetting via RTS pin...
Done
↓ idf.py flash -- help
: flash 명령에 대한 도움말
더보기
$ idf.py flash --help
Usage: idf.py flash [OPTIONS]
Flash the project.
Options:
-C, --project-dir PATH Project directory.
-D, --define-cache-entry TEXT Create a cmake cache entry. This option can
be used at most once either globally, or for
one subcommand.
-b, --baud INTEGER Baud rate for flashing. It can imply monitor
baud rate as well if it hasn't been defined
locally. The default value can be set with
the ESPBAUD environment variable. This option
can be used at most once either globally, or
for one subcommand.
-p, --port PATH Serial port. The default value can be set
with the ESPPORT environment variable. This
option can be used at most once either
globally, or for one subcommand.
--force Force write, skip security and compatibility
checks. Use with caution!
--extra-args TEXT Pass extra arguments to esptool separated by
space. For more details see `esptool.py
write_flash --help`. For example to compress
and verify data use: `idf.py flash --extra-
args="--compress --verify"`. Use with
caution!
--help Show this message and exit.
▶ app-flash
: application 영역만 flash 하기
$ idf.py app-flash
Executing action: app-flash
Serial port /dev/ttyUSB1
Connecting....
Detecting chip type... ESP32-C6
Running ninja in directory /home/xxx/Project/esp32-matter/123/build
Executing "ninja app-flash"...
[1/7] Performing build step for 'chip_gn'
ninja: no work to do.
~~ 중략 ~~
esptool.py v4.8.0
Serial port /dev/ttyUSB1
Connecting....
Chip is ESP32-C6FH4 (QFN32) (revision v0.0)
Features: WiFi 6, BT 5, IEEE802.15.4
Crystal is 40MHz
MAC: 40:4c:ca:ff:fe:43:15:18
BASE MAC: 40:4c:ca:43:15:18
MAC_EXT: ff:fe
Uploading stub...
Running stub...
Stub running...
Changing baud rate to 460800
Changed.
Configuring flash size...
Flash will be erased from 0x00020000 to 0x0027cfff...
image size > 2476160
Compressed 2476160 bytes to 1372569...
Writing at 0x002760d0... (100 %)
Wrote 2476160 bytes (1372569 compressed) at 0x00020000 in 37.3 seconds (effective 531.4 kbit/s)...
Hash of data verified.
Leaving...
Hard resetting via RTS pin...
Done
▶ bootloader-flash
: 부트로더만 flash 하기
$ idf.py bootloader-flash
Executing action: bootloader-flash
Serial port /dev/ttyUSB1
Connecting....
Detecting chip type... ESP32-C6
~~ 중략 ~~
Executing "ninja bootloader-flash"...
~~ 중략 ~~
[1/2] cd /home/xxx/esp/esp-idf/components/boo...idf/components/esptool_py/run_serial_tool.cmake
esptool.py --chip esp32c6 -p /dev/ttyUSB1 -b 460800 --before=default_reset --after=hard_reset write_flash --flash_mode dio --flash_freq 80m --flash_size 4MB 0x0 bootloader/bootloader.bin
esptool.py v4.8.0
Serial port /dev/ttyUSB1
Connecting....
Chip is ESP32-C6FH4 (QFN32) (revision v0.0)
Features: WiFi 6, BT 5, IEEE802.15.4
Crystal is 40MHz
MAC: 40:4c:ca:ff:fe:43:15:18
BASE MAC: 40:4c:ca:43:15:18
MAC_EXT: ff:fe
Uploading stub...
Running stub...
Stub running...
Changing baud rate to 460800
Changed.
Configuring flash size...
Flash will be erased from 0x00000000 to 0x00005fff...
image size > 21776
SHA digest in image updated
Compressed 21776 bytes to 13140...
Writing at 0x00000000... (100 %)
Wrote 21776 bytes (13140 compressed) at 0x00000000 in 0.6 seconds (effective 272.1 kbit/s)...
Hash of data verified.
Leaving...
Hard resetting via RTS pin...
Done
▶ menuconfig
: sdkconfig 파일을 읽어오고 저장합니다.
↓ idf.py menuconfig
↓ menuconfig --help
더보기
$ idf.py menuconfig --help
Usage: idf.py menuconfig [OPTIONS]
Run "menuconfig" project configuration tool.
Options:
-C, --project-dir PATH Project directory.
-D, --define-cache-entry TEXT Create a cmake cache entry. This option can
be used at most once either globally, or for
one subcommand.
--style, --color-scheme TEXT Menuconfig style. The built-in styles
include:
- default - a yellowish theme,
- monochrome - a black and white theme, or
- aquatic - a blue theme.
It is possible to customize these themes
further as it is described in the Color
schemes section of the kconfiglib
documentation. The default value is
"aquatic". The default value can be set with
the MENUCONFIG_STYLE environment variable.
--help Show this message and exit.
▶ monitor -p /dev/ttyACM0
: 프로젝트 디렉토리에서 실행해야 동작합니다. 종료 명령 : Ctrl + ]
→ 프로젝트 루트 디렉토리 미사용
>> case of no project root
$ idf.py monitor
Executing action: monitor
CMakeLists.txt not found in project directory /home/xxx
→ 프로젝트 루트 디렉토리 사용시
더보기
$ idf.py monitor
Executing action: monitor
Running idf_monitor in directory /home/xxx/Project/esp32/myApp1
Executing "/home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python
/home/xxx/esp/esp-idf/tools/idf_monitor.py
-p /dev/ttyACM0 -b 115200 --toolchain-prefix riscv32-esp-elf-
--target esp32c6 --revision 0 -
-decode-panic backtrace
/home/xxx/Project/esp32/myApp1/build/myApp1.elf
-m '/home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python'
'/home/xxx/esp/esp-idf/tools/idf.py'"...
--- esp-idf-monitor 1.3.4 on /dev/ttyACM0 115200 ---
--- Quit: Ctrl+] | Menu: Ctrl+T | Help: Ctrl+T followed by Ctrl+H ---
ESP-ROM:esp32c6-20220919
Build:Sep 19 2022
rst:0x15 (USB_UART_HPSYS),boot:0x6d (SPI_FAST_FLASH_BOOT)
Saved PC:0x408096c8
0x408096c8: rv_utils_wait_for_intr
at /home/xxx/esp/esp-idf/components/riscv/include/riscv/rv_utils.h:52
(inlined by) esp_cpu_wait_for_intr
at /home/xxx/esp/esp-idf/components/esp_hw_support/cpu.c:143
SPIWP:0xee
mode:DIO, clock div:2
load:0x40875720,len:0x1804
load:0x4086c410,len:0xde0
load:0x4086e610,len:0x2df8
entry 0x4086c41a
I (23) boot: ESP-IDF v5.2-beta1-263-ge49823f10c 2nd stage bootloader
I (23) boot: compile time Dec 22 2023 15:14:21
I (24) boot: chip revision: v0.0
I (27) boot.esp32c6: SPI Speed : 80MHz
~~ 중략 ~~
→ --no-reset 옵션 사용하면 현재 상태로 바로 연결됩니다.
더보기
$ idf.py monitor --no-reset -p /dev/ttyUSB1
Executing action: monitor
Running idf_monitor in directory /home/xxx/Project/esp32-matter/myApp1
Executing "/home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python
/home/xxx/esp/esp-idf/tools/idf_monitor.py
-p /dev/ttyUSB1 -b 115200
--toolchain-prefix riscv32-esp-elf-
--target esp32c6 --revision 0
--decode-panic backtrace /home/xxx/Project/esp32-matter/myApp1/build/myApp1.elf
--no-reset
-m '/home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python'
'/home/xxx/esp/esp-idf/tools/idf.py'"...
--- esp-idf-monitor 1.5.0 on /dev/ttyUSB1 115200
--- Quit: Ctrl+] | Menu: Ctrl+T | Help: Ctrl+T followed by Ctrl+H
> help
matter
Matter utilities
help [<string>]
Print the summary of all registered commands if no arguments are given,
otherwise print summary of given command.
<string> Name of command
▶ flash monitor
: 장치에 이미지 다운로드후 디버깅 로그 출력하기
더보기
xxx@ubuntu22:~/Project/esp32/myApp1$ idf.py flash monitor
Executing action: flash
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja flash"...
[1/5] cd /home/xxx/Project/esp32/uc5...32/myApp1/build/myApp1.bin
myApp1.bin binary size 0xfc1a0 bytes. Smallest app partition is 0x180000 bytes. 0x83e60 bytes (34%) free.
[1/1] cd /home/xxx/Project/esp32/myApp1/build/bootloader/bootloader.bin
Bootloader binary size 0x5430 bytes. 0x2bd0 bytes (34%) free.
[2/3] cd /home/xxx/esp/esp-idf/compo...nents/esptool_py/run_serial_tool.cmake
esptool.py --chip esp32c6 -p /dev/ttyACM0 -b 460800 --before=default_reset --after=hard_reset write_flash --flash_mode dio --flash_freq 80m --flash_size 4MB 0x0 bootloader/bootloader.bin 0x10000 myApp1.bin 0x8000 partition_table/partition-table.bin
esptool.py v4.7.0
Serial port /dev/ttyACM0
Connecting...
Chip is ESP32-C6FH4 (QFN32) (revision v0.0)
Features: WiFi 6, BT 5, IEEE802.15.4
Crystal is 40MHz
MAC: 40:4c:ca:ff:fe:43:15:18
BASE MAC: 40:4c:ca:43:15:18
MAC_EXT: ff:fe
Uploading stub...
Running stub...
Stub running...
Changing baud rate to 460800
Changed.
Configuring flash size...
Flash will be erased from 0x00000000 to 0x00005fff...
Flash will be erased from 0x00010000 to 0x0010cfff...
Flash will be erased from 0x00008000 to 0x00008fff...
Compressed 21552 bytes to 12990...
Writing at 0x00000000... (100 %)
Wrote 21552 bytes (12990 compressed) at 0x00000000 in 0.3 seconds (effective 566.9 kbit/s)...
Hash of data verified.
Compressed 1032608 bytes to 551286...
Writing at 0x00106ce2... (100 %)
Wrote 1032608 bytes (551286 compressed) at 0x00010000 in 7.3 seconds (effective 1128.2 kbit/s)...
Hash of data verified.
Compressed 3072 bytes to 120...
Writing at 0x00008000... (100 %)
Wrote 3072 bytes (120 compressed) at 0x00008000 in 0.0 seconds (effective 669.4 kbit/s)...
Hash of data verified.
Leaving...
Hard resetting via RTS pin...
Executing action: monitor
Running idf_monitor in directory /home/xxx/Project/esp32/myApp1
Executing "/home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python
/home/xxx/esp/esp-idf/tools/idf_monitor.py
-p /dev/ttyACM0 -b 115200 --toolchain-prefix riscv32-esp-elf-
--target esp32c6 --revision 0
--decode-panic backtrace /home/xxx/Project/esp32/myApp1/build/myApp1.elf
-m '/home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python' '/home/xxx/esp/esp-idf/tools/idf.py'"...
--- esp-idf-monitor 1.3.4 on /dev/ttyACM0 115200 ---
--- Quit: Ctrl+] | Menu: Ctrl+T | Help: Ctrl+T followed by Ctrl+H ---
I (139) esp_image: segment 1: paddr=0003ebb8 vaddr=408000ESP-ROM:esp32c6-20220919
Build:Sep 19 2022
rst:0x15 (USB_UART_HPSYS),boot:0x4f (SPI_FAST_FLASH_BOOT)
Saved PC:0x4001a378
0x4001a378: ets_sha_process in ROM
SPIWP:0xee
mode:DIO, clock div:2
load:0x40875720,len:0x1804
load:0x4086c410,len:0xde0
load:0x4086e610,len:0x2df8
entry 0x4086c41a
I (23) boot: ESP-IDF v5.2-beta1-263-ge49823f10c 2nd stage bootloader
I (23) boot: compile time Dec 22 2023 15:14:21
I (24) boot: chip revision: v0.0
I (28) boot.esp32c6: SPI Speed : 80MHz
I (32) boot.esp32c6: SPI Mode : DIO
I (37) boot.esp32c6: SPI Flash Size : 4MB
I (42) boot: Enabling RNG early entropy source...
I (47) boot: Partition Table:
I (51) boot: ## Label Usage Type ST Offset Length
I (58) boot: 0 nvs WiFi data 01 02 00009000 00006000
I (66) boot: 1 phy_init RF data 01 01 0000f000 00001000
I (73) boot: 2 factory factory app 00 00 00010000 00180000
I (80) boot: 3 storage Unknown data 01 82 00190000 00070000
I (88) boot: End of partition table
I (92) esp_image: segment 0: paddr=00010020 vaddr=420c0020 size=2eb90h (191376) map
I (140) esp_image: segment 1: paddr=0003ebb8 vaddr=40800000 size=01460h ( 5216) load
I (142) esp_image: segment 2: paddr=00040020 vaddr=42000020 size=b9328h (758568) map
I (299) esp_image: segment 3: paddr=000f9350 vaddr=40801460 size=10928h ( 67880) load
I (316) esp_image: segment 4: paddr=00109c80 vaddr=40811d90 size=024f0h ( 9456) load
~~ 중략 ~~
▶ partition-table
$ idf.py partition-table
Executing action: partition-table
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja partition-table"...
[1/1] cd /home/xxx/Project/esp32/myApp1/build/esp...
********************************************************
"Partition table binary generated. Contents:
*******************************************************************************
# ESP-IDF Partition Table
# Name, Type, SubType, Offset, Size, Flags
nvs,data,nvs,0x9000,24K,
phy_init,data,phy,0xf000,4K,
factory,app,factory,0x10000,1M,
*******************************************************************************
Partition Table build complete. To flash, run this command:
/home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python
../../../esp/esp-idf/components/esptool_py/esptool/esptool.py
-p (PORT)
-b 460800
--before default_reset --after hard_reset
--chip esp32c6
write_flash 0x8000 build/partition_table/partition-table.bin
or run 'idf.py -p (PORT) partition-table-flash'
▶ partition_table
: partition table을 빌드합니다.
이명령은 더이상 사용하지 않고 partition-table을 사용하라고 나옵니다.
더보기
$ idf.py partition_table
Executing action: partition_table
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja partition_table"...
[1/2] cd /home/xxx/Project/esp32/myApp1/build/esp-idf/partition_table
&& /usr/bin/cmake -E echo "Partition table binary generated. Contents:"
&& /usr/bin/cmake -E echo "*******************************************************"
&& /home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python
/home/xxx/esp/esp-idf/components/partition_table/gen_esp32part.py
-q --offset 0x8000
--flash-size 2MB
-- /home/xxx/Project/esp32/myApp1/build/partition_table/partition-table.bin
&& /usr/bin/cmake -E echo "***********************************************"
Partition table binary generated. Contents:
*******************************************************************************
# ESP-IDF Partition Table
# Name, Type, SubType, Offset, Size, Flags
nvs,data,nvs,0x9000,24K,
phy_init,data,phy,0xf000,4K,
factory,app,factory,0x10000,1M,
*******************************************************************************
[2/2] Warning: command "partition_table" is deprecated.
Have you wanted to run "partition-table" instead?
▶ partition-table-flash
: partition-table.bin 을 디바이스에 쓰기
더보기
$ idf.py partition-table-flash
Executing action: partition-table-flash
Running ninja in directory /home/xxx/Project/esp32/spiffs/build
Executing "ninja partition-table-flash"...
[0/1] cd /home/xxx/esp/esp-idf/components/partition_table && /usr/bin/cmake
-D IDF_PATH=/home/xxx/esp/esp-idf
-D "SERIAL_TOOL=/home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python;;
/home/xxx/esp/esp-idf/components/esptool_py/esptool/esptool.py;--chip;esp32c6"
-D "SERIAL_TOOL_ARGS=--before=default_reset;
--after=hard_reset;write_flash;@partition-table-flash_args"
-D WORKING_DIRECTORY=/home/xxx/Project/esp32/spiffs/build
-P /home/xxx/esp/esp-idf/components/esptool_py/run_serial_tool.cmake
esptool.py --chip esp32c6
-p /dev/ttyACM0 -b 460800
--before=default_reset
--after=hard_reset
write_flash
--flash_mode dio
--flash_freq 80m -
-flash_size 2MB 0x8000 partition_table/partition-table.bin
esptool.py v4.7.dev2
Serial port /dev/ttyACM0
Connecting....
Chip is ESP32-C6FH4 (QFN32) (revision v0.0)
Features: WiFi 6, BT 5, IEEE802.15.4
Crystal is 40MHz
MAC: 40:4c:ca:ff:fe:43:15:18
BASE MAC: 40:4c:ca:43:15:18
MAC_EXT: ff:fe
Uploading stub...
Running stub...
Stub running...
Changing baud rate to 460800
Changed.
Configuring flash size...
Flash will be erased from 0x00008000 to 0x00008fff...
Compressed 3072 bytes to 119...
Writing at 0x00008000... (100 %)
Wrote 3072 bytes (119 compressed) at 0x00008000 in 0.0 seconds (effective 702.0 kbit/s)...
Hash of data verified.
Leaving...
Hard resetting via RTS pin...
Done
▶ size
$ idf.py size
Executing action: size
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja all"...
[1/4] cd /home/xxx/Project/esp32/uc5...32/myApp1/build/myApp1.bin
myApp1.bin binary size 0xe2160 bytes.
Smallest app partition is 0x100000 bytes. 0x1dea0 bytes (12%) free.
[1/1] cd /home/xxx/Project/esp32/myApp1/build/bootloader/bootloader.bin
Bootloader binary size 0x5310 bytes. 0x2cf0 bytes (35%) free.
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja size"...
[0/1] cd /home/xxx/Project/esp32/myApp1/build && /usr/bin/cmake
-D "IDF_SIZE_TOOL=/home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python;-m;esp_idf_size"
-D MAP_FILE=/home/xxx/Project/esp32/myApp1/build/myApp1.map
-D OUTPUT_JSON=
-P /home/xxx/esp/esp-idf/tools/cmake/run_size_tool.cmake
Total sizes:
Used stat D/IRAM: 93600 bytes ( 358512 remain, 20.7% used)
.data size: 8828 bytes
.bss size: 19240 bytes
.text size: 65532 bytes
Used Flash size : 851588 bytes
.text: 676540 bytes
.rodata: 172976 bytes
Total image size: 925948 bytes (.bin may be padded larger)
▶ --version
: idf 버전 표시
$ idf.py --version
ESP-IDF v5.1.1-dirty
$ idf.py --version
ESP-IDF v5.2-beta1-263-ge49823f10c
▶ --list-targets
: 지원하는 타겟 리스트 표시 (set-target 에서 사용)
$ idf.py --list-targets
esp32
esp32s2
esp32c3
esp32s3
esp32c2
esp32c6
esp32h2
▶ all
: build 명령과 동일합니다.
Executing action: all (aliases: build)
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja all"...
[1/4] cd /home/xxx/Project/esp32/myApp1/build/esp-idf/esptool_py
&& /home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python
/home/xxx/esp/esp-idf/components/partition_table/check_sizes.py
--offset 0x8000 partition
--type app /home/xxx/Project/esp32/myApp1/build/partition_table/partition-table.bin
/home/xxx/Project/esp32/myApp1/build/myApp1.bin
myApp1.bin binary size 0xe2160 bytes. Smallest app partition is 0x100000 bytes. 0x1dea0 bytes (12%) free.
[2/4] Performing build step for 'bootloader'
[1/1] cd /home/xxx/Project/esp32/myApp1/build/bootloader/esp-idf/esptool_py
&& /home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python
/home/xxx/esp/esp-idf/components/partition_table/check_sizes.py
--offset 0x8000 bootloader 0x0 /home/xxx/Project/esp32/myApp1/build/bootloader/bootloader.bin
Bootloader binary size 0x5310 bytes. 0x2cf0 bytes (35%) free.
Project build complete. To flash, run this command:
/home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python
../../../esp/esp-idf/components/esptool_py/esptool/esptool.py
-p (PORT) -b 460800
--before default_reset --after hard_reset
--chip esp32c6
write_flash
--flash_mode dio
--flash_size 2MB
--flash_freq 80m
0x0 build/bootloader/bootloader.bin
0x8000 build/partition_table/partition-table.bin
0x10000 build/myApp1.bin
or run 'idf.py -p (PORT) flash'
▶ docs
: web 브라우저를 통해 espressif 다큐먼트 페이지가 오픈됍니다.
$ idf.py docs
Executing action: docs
Opening documentation in the default browser:

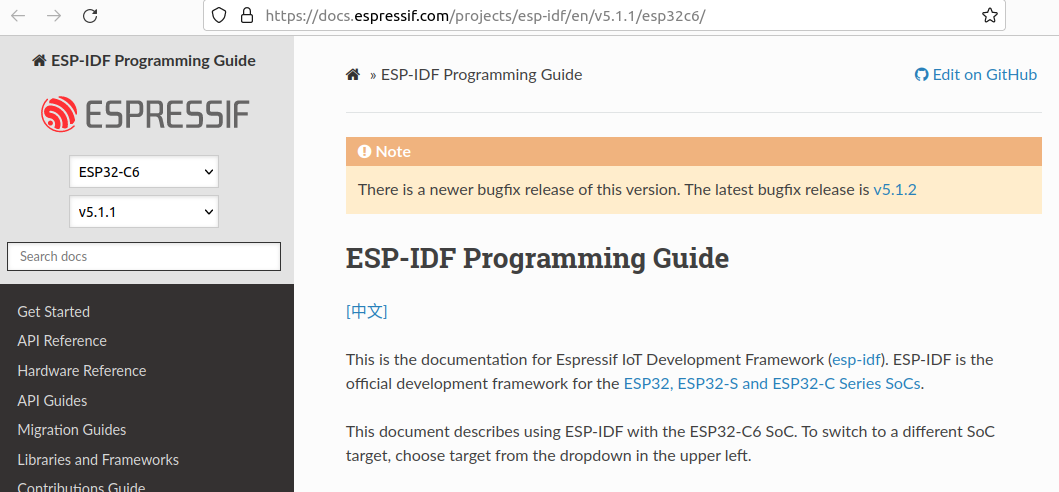

https://docs.espressif.com/projects/esp-idf/en/v5.1.1/esp32c6/
$ idf.py docs -sp api-reference/system/heap_debug.html
Executing action: docs
Opening documentation in the default browser:
https://docs.espressif.com/projects/esp-idf/en/v5.2.1/esp32/api-reference/system/heap_debug.html
$ idf.py docs --help
Usage: idf.py docs [OPTIONS]
Open web browser with documentation for ESP-IDF
Options:
-C, --project-dir PATH Project directory.
-nb, --no-browser Don't open browser.
-l, --language [en|zh_CN|cn] Documentation language. Your system language by default (en or cn)
-sp, --starting-page TEXT Documentation page (get-started, api-reference etc).
-v, --version TEXT Version of ESP-IDF.
-t, --target [esp32|esp32s2|esp32c3|esp32s3|esp32c2|esp32c6|esp32h2|linux|esp32p4|]
Chip target.
--help Show this message and exit.
▶ build-system-targets
: print list of build system targets.
더보기
$ idf.py build-system-targets
Executing action: build-system-targets
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja help"...
[1/1] All primary targets available:menuconfig: phony
confserver: phony
save-defconfig: phony
erase_flash: phony
monitor: phony
flash: phony
encrypted-flash: phony
size: phony
size-files: phony
size-components: phony
uf2-app: phony
uf2: phony
edit_cache: phony
rebuild_cache: phony
list_install_components: phony
install: phony
install/local: phony
install/strip: phony
/home/xxx/Project/esp32/myApp1/build/CMakeFiles/menuconfig: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/CMakeFiles/confserver: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/CMakeFiles/save-defconfig: CUSTOM_COMMAND
~~ 중략 ~~
/home/xxx/Project/esp32/myApp1/build/CMakeFiles/size-components: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/CMakeFiles/uf2-app: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/CMakeFiles/uf2: CUSTOM_COMMAND
esp-idf/edit_cache: phony
esp-idf/rebuild_cache: phony
esp-idf/list_install_components: phony
esp-idf/install: phony
~~ 중략 ~~
esp-idf/efuse/install/local: phony
esp-idf/efuse/install/strip: phony
/home/xxx/Project/esp32/myApp1/build/esp-idf/efuse/CMakeFiles/efuse-common-table: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/esp-idf/efuse/CMakeFiles/efuse_common_table: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/esp-idf/efuse/CMakeFiles/efuse_custom_table: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/esp-idf/efuse/CMakeFiles/show-efuse-table: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/esp-idf/efuse/CMakeFiles/show_efuse_table: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/esp-idf/efuse/CMakeFiles/efuse_test_table: CUSTOM_COMMAND
esp-idf/driver/edit_cache: phony
~~ 중략 ~~
esp-idf/partition_table/install/local: phony
esp-idf/partition_table/install/strip: phony
/home/xxx/Project/esp32/myApp1/build/esp-idf/partition_table/CMakeFiles/partition_table_bin: phony
/home/xxx/Project/esp32/myApp1/build/partition_table/partition-table.bin: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/esp-idf/partition_table/CMakeFiles/partition-table: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/esp-idf/partition_table/CMakeFiles/partition_table: CUSTOM_COMMAND
/home/cxxxhlee/Project/esp32/myApp1/build/esp-idf/partition_table/CMakeFiles/partition-table-flash: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/esp-idf/partition_table/CMakeFiles/encrypted-partition-table-flash: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/esp-idf/partition_table/CMakeFiles/partition_table-flash: CUSTOM_COMMAND
esp-idf/esp_partition/edit_cache: phony
esp-idf/esp_partition/rebuild_cache: phony
esp-idf/esp_partition/list_install_components: phony
~~ 중략 ~~
esp-idf/esp_system/install: phony
esp-idf/esp_system/install/local: phony
esp-idf/esp_system/install/strip: phony
/home/xxx/Project/esp32/myApp1/build/esp-idf/esp_system/CMakeFiles/__ldgen_output_sections.ld: phony
/home/xxx/Project/esp32/myApp1/build/esp-idf/esp_system/ld/sections.ld: CUSTOM_COMMAND
/home/xxx/Project/esp32/myApp1/build/esp-idf/esp_system/CMakeFiles/memory_ld: phony
/home/xxx/Project/esp32/myApp1/build/esp-idf/esp_system/ld/memory.ld: CUSTOM_COMMAND
esp-idf/esp_system/port/edit_cache: phony
esp-idf/esp_system/port/rebuild_cache: phony
esp-idf/esp_system/port/list_install_components: phony
~~ 중략 ~~
esp-idf/main/install/strip: phony
__idf_app_trace: phony
__idf_app_update: phony
__idf_bootloader_support: phony
__idf_bt: phony
__idf_cmock: phony
~~ 중략 ~~
__idf_wpa_supplicant: phony
__ldgen_output_sections.ld: phony
apidoc: phony
app-flash: phony
app_check_size: phony
bootloader-flash: phony
custom_bundle: phony
efuse-common-table: phony
efuse-custom-table: phony
efuse_common_table: phony
efuse_custom_table: phony
efuse_test_table: phony
encrypted-app-flash: phony
encrypted-bootloader-flash: phony
encrypted-partition-table-flash: phony
lib: phony
libapp_trace.a: phony
libapp_update.a: phony
libbootloader_support.a: phony
libbt.a: phony
libcmock.a: phony
libconsole.a: phony
~~ 중략 ~~
libwear_levelling.a: phony
libwifi_provisioning.a: phony
libwpa_supplicant.a: phony
mbedcrypto: phony
mbedtls: phony
mbedx509: phony
memory_ld: phony
partition-table: phony
partition-table-flash: phony
partition_table: phony
partition_table-flash: phony
partition_table_bin: phony
show-efuse-table: phony
show_efuse_table: phony
build.ninja: RERUN_CMAKE
clean: CLEAN
help: HELP
▶ erase-flash
: flash 의 모든 영역을 지우기
더보기
$ idf.py erase-flash
Executing action: erase-flash
Running esptool.py in directory /home/xxx/Project/esp32-matter/light/build
Executing "/home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python
/home/xxx/esp/esp-idf/components/esptool_py/esptool/esptool.py
-p /dev/ttyACM0 -b 460800 --before default_reset
--after hard_reset --chip esp32c6 erase_flash"...
esptool.py v4.7.0
Serial port /dev/ttyACM0
Connecting...
Chip is ESP32-C6FH4 (QFN32) (revision v0.0)
Features: WiFi 6, BT 5, IEEE802.15.4
Crystal is 40MHz
MAC: 40:4c:ca:ff:fe:43:15:18
BASE MAC: 40:4c:ca:43:15:18
MAC_EXT: ff:fe
Uploading stub...
Running stub...
Stub running...
Changing baud rate to 460800
Changed.
Erasing flash (this may take a while)...
Chip erase completed successfully in 14.2s
Hard resetting via RTS pin...
Done
>> 포트 지정하기
$ idf.py flash -p /dev/ttyACM1
Executing action: flash
Running ninja in directory /home/xxx/Project/esp32/blink/build
Executing "ninja flash"...
[1/5] cd /home/xxx/Project/esp32/blink/build/esp-idf/espto...on-table.bin
/home/xxx/Project/esp32/blink/build/blink.bin
blink.bin binary size 0x25600 bytes.
Smallest app partition is 0x100000 bytes. 0xdaa00 bytes (85%) free.
[1/1] cd /home/xxx/Project/esp32/blink/build/bootloader/es...
me/xxx/Project/esp32/blink/build/bootloader/bootloader.bin
Bootloader binary size 0x35b0 bytes. 0x4a50 bytes (58%) free.
[2/3] cd /home/xxx/esp/esp-idf/components/esptool_py &&
/u...xxx/esp/esp-idf/components/esptool_py/run_serial_tool.cmake
esptool.py --chip esp32c6 -p /dev/ttyACM1 -b 460800
--before=default_reset --after=hard_reset write_flash --flash_mode dio
--flash_freq 80m
--flash_size 2MB 0x0 bootloader/bootloader.bin 0x10000 blink.bin 0x8000 partition_table/partition-table.bin
esptool.py v4.7.0
Serial port /dev/ttyACM1
Connecting...
Chip is ESP32-C6FH4 (QFN32) (revision v0.0)
Features: WiFi 6, BT 5, IEEE802.15.4
Crystal is 40MHz
MAC: 40:4c:ca:ff:fe:43:15:18
BASE MAC: 40:4c:ca:43:15:18
MAC_EXT: ff:fe
Uploading stub...
Running stub...
Stub running...
Changing baud rate to 460800
Changed.
Configuring flash size...
Flash will be erased from 0x00000000 to 0x00003fff...
Flash will be erased from 0x00010000 to 0x00035fff...
Flash will be erased from 0x00008000 to 0x00008fff...
Compressed 13744 bytes to 9658...
Writing at 0x00000000... (100 %)
Wrote 13744 bytes (9658 compressed) at 0x00000000 in 0.2 seconds (effective 482.4 kbit/s)...
Hash of data verified.
Compressed 153088 bytes to 78874...
Writing at 0x0002f4f7... (100 %)
Wrote 153088 bytes (78874 compressed) at 0x00010000 in 1.2 seconds (effective 986.2 kbit/s)...
Hash of data verified.
Compressed 3072 bytes to 103...
Writing at 0x00008000... (100 %)
Wrote 3072 bytes (103 compressed) at 0x00008000 in 0.0 seconds (effective 620.1 kbit/s)...
Hash of data verified.
Leaving...
Hard resetting via RTS pin...
▶ fullclean
: 모든 build directory 안의 내용 지우기
$ idf.py fullclean
Executing action: fullclean
Executing action: remove_managed_components
Done
▶ help
더보기
xxx@ubuntu22:~/Project/esp32/myApp1$ idf.py --help
Setting IDF_PATH environment variable: /home/xxx/esp/esp-idf
Usage: idf.py [OPTIONS] COMMAND1 [ARGS]... [COMMAND2 [ARGS]...]...
ESP-IDF CLI build management tool. For commands that are not known to idf.py an attempt to execute it as a
build system target will be made. Selected target: esp32c6
Options:
--version Show IDF version and exit.
--list-targets Print list of supported targets and exit.
-C, --project-dir PATH Project directory.
-B, --build-dir PATH Build directory.
-w, --cmake-warn-uninitialized / -n, --no-warnings
Enable CMake uninitialized variable warnings for CMake files inside the
project directory. (--no-warnings is now the default, and doesn't need to be
specified.) The default value can be set with the
IDF_CMAKE_WARN_UNINITIALIZED environment variable.
-v, --verbose Verbose build output.
--preview Enable IDF features that are still in preview.
--ccache / --no-ccache Use ccache in build. Disabled by default. The default value can be set with
the IDF_CCACHE_ENABLE environment variable.
-G, --generator [Ninja|Unix Makefiles]
CMake generator.
--no-hints Disable hints on how to resolve errors and logging.
-D, --define-cache-entry TEXT Create a cmake cache entry. This option can be used at most once either
globally, or for one subcommand.
-p, --port TEXT Serial port. The default value can be set with the ESPPORT environment
variable. This option can be used at most once either globally, or for one
subcommand.
-b, --baud INTEGER Baud rate for flashing. It can imply monitor baud rate as well if it hasn't
been defined locally. The default value can be set with the ESPBAUD
environment variable. This option can be used at most once either globally,
or for one subcommand.
--help Show this message and exit.
Commands:
add-dependency Add dependency to the manifest file.
all Aliases: build. Build the project.
app Build only the app.
app-flash Flash the app only.
bootloader Build only bootloader.
bootloader-flash Flash bootloader only.
build-system-targets Print list of build system targets.
clean Delete build output files from the build directory.
confserver Run JSON configuration server.
coredump-debug Create core dump ELF file and run GDB debug session with this file.
coredump-info Print crashed task’s registers, callstack, list of available tasks in the
system, memory regions and contents of memory stored in core dump (TCBs and
stacks)
create-component Create a new component.
create-manifest Create manifest for specified component.
create-project Create a new project.
create-project-from-example Create a project from an example.
delete-version (Deprecated) Deprecated! New CLI command: "compote component delete". Delete
specified version of the component from the component registry.
docs Open web browser with documentation for ESP-IDF
efuse-common-table Generate C-source for IDF's eFuse fields.
efuse-custom-table Generate C-source for user's eFuse fields.
encrypted-app-flash Flash the encrypted app only.
encrypted-flash Flash the encrypted project.
erase-flash Erase entire flash chip.
erase-otadata Erase otadata partition.
flash Flash the project.
fullclean Delete the entire build directory contents.
gdb Run the GDB.
gdbgui GDB UI in default browser.
gdbtui GDB TUI mode.
menuconfig Run "menuconfig" project configuration tool.
monitor Display serial output.
openocd Run openocd from current path
pack-component (Deprecated) Deprecated! New CLI command: "compote component pack". Create
component archive and store it in the dist directory.
partition-table Build only partition table.
partition-table-flash Flash partition table only.
post-debug Utility target to read the output of async debug action and stop them.
python-clean Delete generated Python byte code from the IDF directory
read-otadata Read otadata partition.
reconfigure Re-run CMake.
save-defconfig Generate a sdkconfig.defaults with options different from the default ones
set-target Set the chip target to build.
show-efuse-table Print eFuse table.
size Print basic size information about the app.
size-components Print per-component size information.
size-files Print per-source-file size information.
uf2 Generate the UF2 binary with all the binaries included
uf2-app Generate an UF2 binary for the application only
update-dependencies Update dependencies of the project
upload-component (Deprecated) Deprecated! New CLI command: "compote component upload". Upload
component to the component registry. If the component doesn't exist in the
registry it will be created automatically.
upload-component-status (Deprecated) Deprecated! New CLI command: "compote component upload-status".
Check the component uploading status by the job ID.
▶ uf2
: uf2 형식의 파일 생성
$ idf.py uf2 --help
Usage: idf.py uf2 [OPTIONS]
Options:
-C, --project-dir PATH Project directory.
--md5-disable Disable MD5 checksum
--help Show this message and exit.
$ idf.py uf2
Adding "uf2"'s dependency "all" to list of commands with default set of options.
Executing action: all (aliases: build)
Running ninja in directory /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build
Executing "ninja all"...
[1/4] cd /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/esp-idf/esptoo...lee/Project/tuya/tuya_iot_link_sdk_for_esp32/build/tuya_iot_link_sdk_for_esp32.bin
tuya_iot_link_sdk_for_esp32.bin binary size 0xf8410 bytes. Smallest app partition is 0x100000 bytes. 0x7bf0 bytes (3%) free.
Warning: The smallest app partition is nearly full (3% free space left)!
[1/1] cd /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/bootloader/esp...ome/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/bootloader/bootloader.bin
Bootloader binary size 0x54e0 bytes. 0x2b20 bytes (34%) free.
Executing action: uf2
Running ninja in directory /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build
Executing "ninja uf2"...
[0/1] cd /home/xxx/esp/esp-idf/components/esptool_py && /usr/bin/cmake -D IDF_PATH=/home/xxx/esp/esp-idf -D "SERIAL_TOOL=/home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python;/home/xxx/esp/esp-idf/tools/mkuf2.py;write;--chip;esp32c6" -D "SERIAL_TOOL_ARGS=--json;/home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/flasher_args.json;-o;/home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/uf2.bin" -P run_serial_tool.cmake
Note: /home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python;/home/xxx/esp/esp-idf/tools/mkuf2.py;write;--chip;esp32c6 will search for a serial port. To specify a port, set the ESPPORT environment variable.
Note: /home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python;/home/xxx/esp/esp-idf/tools/mkuf2.py;write;--chip;esp32c6 will attempt to set baud rate automatically. To specify a baud rate, set the ESPBAUD environment variable.
esptool.py v4.7.0
Adding /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/bootloader/bootloader.bin at 0x0
Adding /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/partition_table/partition-table.bin at 0x8000
Adding /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/tuya_iot_link_sdk_for_esp32.bin at 0x10000
Wrote 0x120400 bytes to file /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/uf2.bin, ready to be flashed with any ESP USB Bridge
Executing: /home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python -m esptool --chip esp32c6 merge_bin --format uf2 -o /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/uf2.bin 0x0 /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/bootloader/bootloader.bin 0x10000 /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/tuya_iot_link_sdk_for_esp32.bin 0x8000 /home/xxx/Project/tuya/tuya_iot_link_sdk_for_esp32/build/partition_table/partition-table.bin
Done
> uf2.bin 파일 생성 (기존 bin 파일보다 약간 큼)
▶ reconfigure
: CMake를 다시 실행시켜주는 옵션
더보기
$ idf.py reconfigure --help
Usage: idf.py reconfigure [OPTIONS]
Re-run CMake even if it doesn't seem to need re-running. This isn't
necessary during normal usage, but can be useful after adding/removing files
from the source tree, or when modifying CMake cache variables. For example,
"idf.py -DNAME='VALUE' reconfigure" can be used to set variable "NAME" in
CMake cache to value "VALUE".
Options:
-C, --project-dir PATH Project directory.
-D, --define-cache-entry TEXT Create a cmake cache entry. This option can
be used at most once either globally, or for
one subcommand.
--help Show this message and exit.
$ idf.py reconfigure
Executing action: reconfigure
Running cmake in directory /home/xxx/Project/esp32/blink/build
Executing "cmake -G Ninja -DPYTHON_DEPS_CHECKED=1 -DPYTHON=/home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python
-DESP_PLATFORM=1 -DCCACHE_ENABLE=1 /home/xxx/Project/esp32/blink"...
-- ccache will be used for faster recompilation
-- Building ESP-IDF components for target esp32c6
NOTICE:
Following dependencies have new versions available:
Dependency "espressif/led_strip": "2.5.2" -> "2.5.5"
Consider running "idf.py update-dependencies" to update your lock file.
Processing 2 dependencies:
[1/2] espressif/led_strip (2.5.2)
[2/2] idf (5.2.1)
-- Project sdkconfig file /home/xxx/Project/esp32/blink/sdkconfig
Loading defaults file /home/xxx/Project/esp32/blink/sdkconfig.defaults...
-- App "blink" version: 3a89d69
-- Adding linker script /home/xxx/Project/esp32/blink/build/esp-idf/esp_system/ld/memory.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_system/ld/esp32c6/sections.ld.in
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.api.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.rvfp.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.newlib.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.version.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.phy.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.coexist.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.net80211.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.pp.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.wdt.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.newlib-normal.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.heap.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/soc/esp32c6/ld/esp32c6.peripherals.ld
-- Components: app_trace app_update bootloader bootloader_support bt cmock console cxx driver efuse esp-tls esp_adc esp_app_format esp_bootloader_format esp_coex esp_common esp_eth esp_event esp_gdbstub esp_hid esp_http_client esp_http_server esp_https_ota esp_https_server esp_hw_support esp_lcd esp_local_ctrl esp_mm esp_netif esp_netif_stack esp_partition esp_phy esp_pm esp_psram esp_ringbuf esp_rom esp_system esp_timer esp_wifi espcoredump espressif__led_strip esptool_py fatfs freertos hal heap http_parser idf_test ieee802154 iot-core_config json log lwip main mbedtls mqtt newlib nvs_flash nvs_sec_provider openthread partition_table protobuf-c protocomm pthread riscv sdmmc soc spi_flash spiffs tcp_transport ulp unity usb vfs wear_levelling wifi_provisioning wpa_supplicant
-- Component paths: /home/xxx/esp/esp-idf/components/app_trace /home/xxx/esp/esp-idf/components/app_update /home/xxx/esp/esp-idf/components/bootloader /home/xxx/esp/esp-idf/components/bootloader_support /home/xxx/esp/esp-idf/components/bt /home/xxx/esp/esp-idf/components/cmock /home/xxx/esp/esp-idf/components/console /home/xxx/esp/esp-idf/components/cxx /home/xxx/esp/esp-idf/components/driver /home/xxx/esp/esp-idf/components/efuse /home/xxx/esp/esp-idf/components/esp-tls /home/xxx/esp/esp-idf/components/esp_adc /home/xxx/esp/esp-idf/components/esp_app_format /home/xxx/esp/esp-idf/components/esp_bootloader_format /home/xxx/esp/esp-idf/components/esp_coex /home/xxx/esp/esp-idf/components/esp_common /home/xxx/esp/esp-idf/components/esp_eth /home/xxx/esp/esp-idf/components/esp_event /home/xxx/esp/esp-idf/components/esp_gdbstub /home/xxx/esp/esp-idf/components/esp_hid /home/xxx/esp/esp-idf/components/esp_http_client /home/xxx/esp/esp-idf/components/esp_http_server /home/xxx/esp/esp-idf/components/esp_https_ota /home/xxx/esp/esp-idf/components/esp_https_server /home/xxx/esp/esp-idf/components/esp_hw_support /home/xxx/esp/esp-idf/components/esp_lcd /home/xxx/esp/esp-idf/components/esp_local_ctrl /home/xxx/esp/esp-idf/components/esp_mm /home/xxx/esp/esp-idf/components/esp_netif /home/xxx/esp/esp-idf/components/esp_netif_stack /home/xxx/esp/esp-idf/components/esp_partition /home/xxx/esp/esp-idf/components/esp_phy /home/xxx/esp/esp-idf/components/esp_pm /home/xxx/esp/esp-idf/components/esp_psram /home/xxx/esp/esp-idf/components/esp_ringbuf /home/xxx/esp/esp-idf/components/esp_rom /home/xxx/esp/esp-idf/components/esp_system /home/xxx/esp/esp-idf/components/esp_timer /home/xxx/esp/esp-idf/components/esp_wifi /home/xxx/esp/esp-idf/components/espcoredump /home/xxx/Project/esp32/blink/managed_components/espressif__led_strip /home/xxx/esp/esp-idf/components/esptool_py /home/xxx/esp/esp-idf/components/fatfs /home/xxx/esp/esp-idf/components/freertos /home/xxx/esp/esp-idf/components/hal /home/xxx/esp/esp-idf/components/heap /home/xxx/esp/esp-idf/components/http_parser /home/xxx/esp/esp-idf/components/idf_test /home/xxx/esp/esp-idf/components/ieee802154 /home/xxx/esp/esp-idf/components/iot-core_config /home/xxx/esp/esp-idf/components/json /home/xxx/esp/esp-idf/components/log /home/xxx/esp/esp-idf/components/lwip /home/xxx/Project/esp32/blink/main /home/xxx/esp/esp-idf/components/mbedtls /home/xxx/esp/esp-idf/components/mqtt /home/xxx/esp/esp-idf/components/newlib /home/xxx/esp/esp-idf/components/nvs_flash /home/xxx/esp/esp-idf/components/nvs_sec_provider /home/xxx/esp/esp-idf/components/openthread /home/xxx/esp/esp-idf/components/partition_table /home/xxx/esp/esp-idf/components/protobuf-c /home/xxx/esp/esp-idf/components/protocomm /home/xxx/esp/esp-idf/components/pthread /home/xxx/esp/esp-idf/components/riscv /home/xxx/esp/esp-idf/components/sdmmc /home/xxx/esp/esp-idf/components/soc /home/xxx/esp/esp-idf/components/spi_flash /home/xxx/esp/esp-idf/components/spiffs /home/xxx/esp/esp-idf/components/tcp_transport /home/xxx/esp/esp-idf/components/ulp /home/xxx/esp/esp-idf/components/unity /home/xxx/esp/esp-idf/components/usb /home/xxx/esp/esp-idf/components/vfs /home/xxx/esp/esp-idf/components/wear_levelling /home/xxx/esp/esp-idf/components/wifi_provisioning /home/xxx/esp/esp-idf/components/wpa_supplicant
-- Configuring done
-- Generating done
-- Build files have been written to: /home/xxx/Project/esp32/blink/build
▶ python-clean
: 생성된 파이션 바이트코드를 제거시 사용합니다. 주로 IDF/Python 버전 변환시 발생하는 문제를 해결할려고 할때
사용합니다.
>> python-clean 시 아래의 파일이 삭제됨.
$ find -name *.pyc
./components/partition_table/__pycache__/gen_esp32part.cpython-310.pyc
./tools/__pycache__/python_version_checker.cpython-310.pyc
$ idf.py python-clean
Executing action: python-clean
▶ save-defconfig
: sdkconfig.defaults 생성옵션
blink$ idf.py save-defconfig
[0/1] Re-running CMake...
-- ccache will be used for faster recompilation
-- Building ESP-IDF components for target esp32c6
NOTICE:
Following dependencies have new versions available:
Dependency "espressif/led_strip": "2.5.2" -> "2.5.5"
Consider running "idf.py update-dependencies" to update your lock file.
Processing 2 dependencies:
[1/2] espressif/led_strip (2.5.2)
[2/2] idf (5.2.1)
-- Project sdkconfig file /home/xxx/Project/esp32/blink/sdkconfig
-- App "blink" version: 3a89d69
-- Adding linker script /home/xxx/Project/esp32/blink/build/esp-idf/esp_system/ld/memory.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_system/ld/esp32c6/sections.ld.in
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.api.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.rvfp.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.newlib.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.version.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.phy.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.coexist.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.net80211.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.pp.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.wdt.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.newlib-normal.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32c6/ld/esp32c6.rom.heap.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/soc/esp32c6/ld/esp32c6.peripherals.ld
-- Components: app_trace app_update bootloader bootloader_support bt cmock console cxx driver efuse esp-tls esp_adc esp_app_format esp_bootloader_format esp_coex esp_common esp_eth esp_event esp_gdbstub esp_hid esp_http_client esp_http_server esp_https_ota esp_https_server esp_hw_support esp_lcd esp_local_ctrl esp_mm esp_netif esp_netif_stack esp_partition esp_phy esp_pm esp_psram esp_ringbuf esp_rom esp_system esp_timer esp_wifi espcoredump espressif__led_strip esptool_py fatfs freertos hal heap http_parser idf_test ieee802154 iot-core_config json log lwip main mbedtls mqtt newlib nvs_flash nvs_sec_provider openthread partition_table protobuf-c protocomm pthread riscv sdmmc soc spi_flash spiffs tcp_transport ulp unity usb vfs wear_levelling wifi_provisioning wpa_supplicant
-- Component paths: /home/xxx/esp/esp-idf/components/app_trace /home/xxx/esp/esp-idf/components/app_update /home/xxx/esp/esp-idf/components/bootloader /home/xxx/esp/esp-idf/components/bootloader_support /home/xxx/esp/esp-idf/components/bt /home/xxx/esp/esp-idf/components/cmock /home/xxx/esp/esp-idf/components/console /home/xxx/esp/esp-idf/components/cxx /home/xxx/esp/esp-idf/components/driver /home/xxx/esp/esp-idf/components/efuse /home/xxx/esp/esp-idf/components/esp-tls /home/xxx/esp/esp-idf/components/esp_adc /home/xxx/esp/esp-idf/components/esp_app_format /home/xxx/esp/esp-idf/components/esp_bootloader_format /home/xxx/esp/esp-idf/components/esp_coex /home/xxx/esp/esp-idf/components/esp_common /home/xxx/esp/esp-idf/components/esp_eth /home/xxx/esp/esp-idf/components/esp_event /home/xxx/esp/esp-idf/components/esp_gdbstub /home/xxx/esp/esp-idf/components/esp_hid /home/xxx/esp/esp-idf/components/esp_http_client /home/xxx/esp/esp-idf/components/esp_http_server /home/xxx/esp/esp-idf/components/esp_https_ota /home/xxx/esp/esp-idf/components/esp_https_server /home/xxx/esp/esp-idf/components/esp_hw_support /home/xxx/esp/esp-idf/components/esp_lcd /home/xxx/esp/esp-idf/components/esp_local_ctrl /home/xxx/esp/esp-idf/components/esp_mm /home/xxx/esp/esp-idf/components/esp_netif /home/xxx/esp/esp-idf/components/esp_netif_stack /home/xxx/esp/esp-idf/components/esp_partition /home/xxx/esp/esp-idf/components/esp_phy /home/xxx/esp/esp-idf/components/esp_pm /home/xxx/esp/esp-idf/components/esp_psram /home/xxx/esp/esp-idf/components/esp_ringbuf /home/xxx/esp/esp-idf/components/esp_rom /home/xxx/esp/esp-idf/components/esp_system /home/xxx/esp/esp-idf/components/esp_timer /home/xxx/esp/esp-idf/components/esp_wifi /home/xxx/esp/esp-idf/components/espcoredump /home/xxx/Project/esp32/blink/managed_components/espressif__led_strip /home/xxx/esp/esp-idf/components/esptool_py /home/xxx/esp/esp-idf/components/fatfs /home/xxx/esp/esp-idf/components/freertos /home/xxx/esp/esp-idf/components/hal /home/xxx/esp/esp-idf/components/heap /home/xxx/esp/esp-idf/components/http_parser /home/xxx/esp/esp-idf/components/idf_test /home/xxx/esp/esp-idf/components/ieee802154 /home/xxx/esp/esp-idf/components/iot-core_config /home/xxx/esp/esp-idf/components/json /home/xxx/esp/esp-idf/components/log /home/xxx/esp/esp-idf/components/lwip /home/xxx/Project/esp32/blink/main /home/xxx/esp/esp-idf/components/mbedtls /home/xxx/esp/esp-idf/components/mqtt /home/xxx/esp/esp-idf/components/newlib /home/xxx/esp/esp-idf/components/nvs_flash /home/xxx/esp/esp-idf/components/nvs_sec_provider /home/xxx/esp/esp-idf/components/openthread /home/xxx/esp/esp-idf/components/partition_table /home/xxx/esp/esp-idf/components/protobuf-c /home/xxx/esp/esp-idf/components/protocomm /home/xxx/esp/esp-idf/components/pthread /home/xxx/esp/esp-idf/components/riscv /home/xxx/esp/esp-idf/components/sdmmc /home/xxx/esp/esp-idf/components/soc /home/xxx/esp/esp-idf/components/spi_flash /home/xxx/esp/esp-idf/components/spiffs /home/xxx/esp/esp-idf/components/tcp_transport /home/xxx/esp/esp-idf/components/ulp /home/xxx/esp/esp-idf/components/unity /home/xxx/esp/esp-idf/components/usb /home/xxx/esp/esp-idf/components/vfs /home/xxx/esp/esp-idf/components/wear_levelling /home/xxx/esp/esp-idf/components/wifi_provisioning /home/xxx/esp/esp-idf/components/wpa_supplicant
-- Configuring done
-- Generating done
-- Build files have been written to: /home/xxx/Project/esp32/blink/build
[0/1] cd /home/xxx/Project/esp32/blink/build && /home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python /home/xxx/esp/esp-idf/tools/kconfig_new/prepare_kconfig_files.py --list-separator=semicolon --env-file /home/xxx/Project/esp32/blink/build/config.env && /home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python -m kconfgen --list-separator=semicolon --kconfig /home/xxx/esp/esp-idf/Kconfig --sdkconfig-rename /home/xxx/esp/esp-idf/sdkconfig.rename --config /home/xxx/Project/esp32/blink/sdkconfig --env-file /home/xxx/Project/esp32/blink/build/config.env --dont-write-deprecated --output savedefconfig /home/xxx/Project/esp32/blink/sdkconfig.defaults
>> sdkconfig.defaults 가 새로 갱신이 됩니다.
:~/Project/esp32/blink$ ls -al sdkconfig.defaults
-rw-rw-r-- 1 xxx xxx 268 Aug 30 10:49 sdkconfig.defaults
>> sdkconfig.defaults 안의 내용
$ cat sdkconfig.defaults
# This file was generated using idf.py save-defconfig. It can be edited manually.
# Espressif IoT Development Framework (ESP-IDF) 5.2.1 Project Minimal Configuration
#
CONFIG_IDF_TARGET="esp32c6"
CONFIG_BOOTLOADER_LOG_LEVEL_NONE=y
CONFIG_ESP_CONSOLE_USB_SERIAL_JTAG=y
▶ set-target
: 빌드할 chip-target 설정
더보기
$ idf.py set-target
Usage: idf.py set-target [OPTIONS] {esp32|esp32s2|esp32c3|esp32s3|esp32c2|esp32c6
|esp32h2|linux|esp32p4}
Try 'idf.py set-target --help' for help.
Error: Missing argument '{esp32|esp32s2|esp32c3|esp32s3|esp32c2|esp32c6|esp32h2|linux|esp32p4}'. Choose from:
esp32,
esp32s2,
esp32c3,
esp32s3,
esp32c2,
esp32c6,
esp32h2,
linux,
esp32p4
>> blink 예제에 set-target 명령시 로그
$ idf.py set-target esp32s3
-- Existing sdkconfig '/home/xxx/Project/esp32/blink/sdkconfig' renamed to '/home/xxx/Project/esp32/blink/sdkconfig.old'.
-- Found Git: /usr/bin/git (found version "2.34.1")
-- ccache will be used for faster recompilation
-- The C compiler identification is GNU 13.2.0
-- The CXX compiler identification is GNU 13.2.0
-- The ASM compiler identification is GNU
-- Found assembler: /home/xxx/.espressif/tools/xtensa-esp-elf/esp-13.2.0_20230928/xtensa-esp-elf/bin/xtensa-esp32s3-elf-gcc
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /home/xxx/.espressif/tools/xtensa-esp-elf/esp-13.2.0_20230928/xtensa-esp-elf/bin/xtensa-esp32s3-elf-gcc - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /home/xxx/.espressif/tools/xtensa-esp-elf/esp-13.2.0_20230928/xtensa-esp-elf/bin/xtensa-esp32s3-elf-g++ - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Building ESP-IDF components for target esp32s3
NOTICE:
Following dependencies have new versions available:
Dependency "espressif/led_strip": "2.5.2" -> "2.5.5"
Consider running "idf.py update-dependencies" to update your lock file.
NOTICE: Updating lock file at /home/xxx/Project/esp32/blink/dependencies.lock
Processing 2 dependencies:
[1/2] espressif/led_strip (2.5.2)
[2/2] idf (5.2.1)
-- Project sdkconfig file /home/xxx/Project/esp32/blink/sdkconfig
-- Compiler supported targets: xtensa-esp-elf
-- Looking for sys/types.h
-- Looking for sys/types.h - found
-- Looking for stdint.h
-- Looking for stdint.h - found
-- Looking for stddef.h
-- Looking for stddef.h - found
-- Check size of time_t
-- Check size of time_t - done
-- Found Python3: /home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python (found version "3.10.12") found components: Interpreter
-- Performing Test C_COMPILER_SUPPORTS_WFORMAT_SIGNEDNESS
-- Performing Test C_COMPILER_SUPPORTS_WFORMAT_SIGNEDNESS - Success
-- App "blink" version: 3a89d69-dirty
-- Adding linker script /home/xxx/Project/esp32/blink/build/esp-idf/esp_system/ld/memory.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_system/ld/esp32s3/sections.ld.in
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32s3/ld/esp32s3.rom.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32s3/ld/esp32s3.rom.api.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32s3/ld/esp32s3.rom.libgcc.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32s3/ld/esp32s3.rom.newlib.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/esp_rom/esp32s3/ld/esp32s3.rom.version.ld
-- Adding linker script /home/xxx/esp/esp-idf/components/soc/esp32s3/ld/esp32s3.peripherals.ld
-- Components: app_trace app_update bootloader bootloader_support bt cmock console cxx driver efuse esp-tls esp_adc esp_app_format esp_bootloader_format esp_coex esp_common esp_eth esp_event esp_gdbstub esp_hid esp_http_client esp_http_server esp_https_ota esp_https_server esp_hw_support esp_lcd esp_local_ctrl esp_mm esp_netif esp_netif_stack esp_partition esp_phy esp_pm esp_psram esp_ringbuf esp_rom esp_system esp_timer esp_wifi espcoredump espressif__led_strip esptool_py fatfs freertos hal heap http_parser idf_test ieee802154 iot-core_config json log lwip main mbedtls mqtt newlib nvs_flash nvs_sec_provider openthread partition_table perfmon protobuf-c protocomm pthread sdmmc soc spi_flash spiffs tcp_transport touch_element ulp unity usb vfs wear_levelling wifi_provisioning wpa_supplicant xtensa
-- Component paths: /home/xxx/esp/esp-idf/components/app_trace /home/xxx/esp/esp-idf/components/app_update /home/xxx/esp/esp-idf/components/bootloader /home/xxx/esp/esp-idf/components/bootloader_support /home/xxx/esp/esp-idf/components/bt /home/xxx/esp/esp-idf/components/cmock /home/xxx/esp/esp-idf/components/console /home/xxx/esp/esp-idf/components/cxx /home/xxx/esp/esp-idf/components/driver /home/xxx/esp/esp-idf/components/efuse /home/xxx/esp/esp-idf/components/esp-tls /home/xxx/esp/esp-idf/components/esp_adc /home/xxx/esp/esp-idf/components/esp_app_format /home/xxx/esp/esp-idf/components/esp_bootloader_format /home/xxx/esp/esp-idf/components/esp_coex /home/xxx/esp/esp-idf/components/esp_common /home/xxx/esp/esp-idf/components/esp_eth /home/xxx/esp/esp-idf/components/esp_event /home/xxx/esp/esp-idf/components/esp_gdbstub /home/xxx/esp/esp-idf/components/esp_hid /home/xxx/esp/esp-idf/components/esp_http_client /home/xxx/esp/esp-idf/components/esp_http_server /home/xxx/esp/esp-idf/components/esp_https_ota /home/xxx/esp/esp-idf/components/esp_https_server /home/xxx/esp/esp-idf/components/esp_hw_support /home/xxx/esp/esp-idf/components/esp_lcd /home/xxx/esp/esp-idf/components/esp_local_ctrl /home/xxx/esp/esp-idf/components/esp_mm /home/xxx/esp/esp-idf/components/esp_netif /home/xxx/esp/esp-idf/components/esp_netif_stack /home/xxx/esp/esp-idf/components/esp_partition /home/xxx/esp/esp-idf/components/esp_phy /home/xxx/esp/esp-idf/components/esp_pm /home/xxx/esp/esp-idf/components/esp_psram /home/xxx/esp/esp-idf/components/esp_ringbuf /home/xxx/esp/esp-idf/components/esp_rom /home/xxx/esp/esp-idf/components/esp_system /home/xxx/esp/esp-idf/components/esp_timer /home/xxx/esp/esp-idf/components/esp_wifi /home/xxx/esp/esp-idf/components/espcoredump /home/xxx/Project/esp32/blink/managed_components/espressif__led_strip /home/xxx/esp/esp-idf/components/esptool_py /home/xxx/esp/esp-idf/components/fatfs /home/xxx/esp/esp-idf/components/freertos /home/xxx/esp/esp-idf/components/hal /home/xxx/esp/esp-idf/components/heap /home/xxx/esp/esp-idf/components/http_parser /home/xxx/esp/esp-idf/components/idf_test /home/xxx/esp/esp-idf/components/ieee802154 /home/xxx/esp/esp-idf/components/iot-core_config /home/xxx/esp/esp-idf/components/json /home/xxx/esp/esp-idf/components/log /home/xxx/esp/esp-idf/components/lwip /home/xxx/Project/esp32/blink/main /home/xxx/esp/esp-idf/components/mbedtls /home/xxx/esp/esp-idf/components/mqtt /home/xxx/esp/esp-idf/components/newlib /home/xxx/esp/esp-idf/components/nvs_flash /home/xxx/esp/esp-idf/components/nvs_sec_provider /home/xxx/esp/esp-idf/components/openthread /home/xxx/esp/esp-idf/components/partition_table /home/xxx/esp/esp-idf/components/perfmon /home/xxx/esp/esp-idf/components/protobuf-c /home/xxx/esp/esp-idf/components/protocomm /home/xxx/esp/esp-idf/components/pthread /home/xxx/esp/esp-idf/components/sdmmc /home/xxx/esp/esp-idf/components/soc /home/xxx/esp/esp-idf/components/spi_flash /home/xxx/esp/esp-idf/components/spiffs /home/xxx/esp/esp-idf/components/tcp_transport /home/xxx/esp/esp-idf/components/touch_element /home/xxx/esp/esp-idf/components/ulp /home/xxx/esp/esp-idf/components/unity /home/xxx/esp/esp-idf/components/usb /home/xxx/esp/esp-idf/components/vfs /home/xxx/esp/esp-idf/components/wear_levelling /home/xxx/esp/esp-idf/components/wifi_provisioning /home/xxx/esp/esp-idf/components/wpa_supplicant /home/xxx/esp/esp-idf/components/xtensa
-- Configuring done
-- Generating done
-- Build files have been written to: /home/xxx/Project/esp32/blink/build
▶ show-efuse-table
: efuse table 표시
더보기
[1/1] cd /home/xxx/Project/esp32/blink/build/esp-idf/efuse &&
/home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python
/home/xxx/esp/esp-idf/components/efuse/efuse_table_gen.py
/home/xxx/esp/esp-idf/components/efuse/esp32s3/esp_efuse_table.csv
-t esp32s3 --max_blk_len 256 --info
Parsing efuse CSV input file /home/xxx/esp/esp-idf/components/efuse/esp32s3/esp_efuse_table.csv ...
Verifying efuse table...
Max number of bits in BLK 256
Sorted efuse table:
# field_name efuse_block bit_start bit_count
1 WR_DIS EFUSE_BLK0 0 32
2 WR_DIS.RD_DIS EFUSE_BLK0 0 1
3 WR_DIS.DIS_ICACHE EFUSE_BLK0 2 1
4 WR_DIS.DIS_DCACHE EFUSE_BLK0 2 1
5 WR_DIS.DIS_DOWNLOAD_ICACHE EFUSE_BLK0 2 1
6 WR_DIS.DIS_DOWNLOAD_DCACHE EFUSE_BLK0 2 1
7 WR_DIS.DIS_FORCE_DOWNLOAD EFUSE_BLK0 2 1
8 WR_DIS.DIS_USB_OTG EFUSE_BLK0 2 1
9 WR_DIS.DIS_TWAI EFUSE_BLK0 2 1
10 WR_DIS.DIS_APP_CPU EFUSE_BLK0 2 1
11 WR_DIS.DIS_PAD_JTAG EFUSE_BLK0 2 1
12 WR_DIS.DIS_DOWNLOAD_MANUAL_ENCRYPT EFUSE_BLK0 2 1
13 WR_DIS.DIS_USB_JTAG EFUSE_BLK0 2 1
14 WR_DIS.DIS_USB_SERIAL_JTAG EFUSE_BLK0 2 1
15 WR_DIS.STRAP_JTAG_SEL EFUSE_BLK0 2 1
16 WR_DIS.USB_PHY_SEL EFUSE_BLK0 2 1
17 WR_DIS.VDD_SPI_XPD EFUSE_BLK0 3 1
18 WR_DIS.VDD_SPI_TIEH EFUSE_BLK0 3 1
19 WR_DIS.VDD_SPI_FORCE EFUSE_BLK0 3 1
20 WR_DIS.WDT_DELAY_SEL EFUSE_BLK0 3 1
21 WR_DIS.SPI_BOOT_CRYPT_CNT EFUSE_BLK0 4 1
22 WR_DIS.SECURE_BOOT_KEY_REVOKE0 EFUSE_BLK0 5 1
23 WR_DIS.SECURE_BOOT_KEY_REVOKE1 EFUSE_BLK0 6 1
24 WR_DIS.SECURE_BOOT_KEY_REVOKE2 EFUSE_BLK0 7 1
25 WR_DIS.KEY_PURPOSE_0 EFUSE_BLK0 8 1
26 WR_DIS.KEY_PURPOSE_1 EFUSE_BLK0 9 1
27 WR_DIS.KEY_PURPOSE_2 EFUSE_BLK0 10 1
28 WR_DIS.KEY_PURPOSE_3 EFUSE_BLK0 11 1
29 WR_DIS.KEY_PURPOSE_4 EFUSE_BLK0 12 1
30 WR_DIS.KEY_PURPOSE_5 EFUSE_BLK0 13 1
31 WR_DIS.SECURE_BOOT_EN EFUSE_BLK0 15 1
32 WR_DIS.SECURE_BOOT_AGGRESSIVE_REVOKE EFUSE_BLK0 16 1
33 WR_DIS.FLASH_TPUW EFUSE_BLK0 18 1
34 WR_DIS.DIS_DOWNLOAD_MODE EFUSE_BLK0 18 1
35 WR_DIS.DIS_DIRECT_BOOT EFUSE_BLK0 18 1
36 WR_DIS.DIS_USB_SERIAL_JTAG_ROM_PRINT EFUSE_BLK0 18 1
37 WR_DIS.FLASH_ECC_MODE EFUSE_BLK0 18 1
38 WR_DIS.DIS_USB_SERIAL_JTAG_DOWNLOAD_MODE EFUSE_BLK0 18 1
39 WR_DIS.ENABLE_SECURITY_DOWNLOAD EFUSE_BLK0 18 1
40 WR_DIS.UART_PRINT_CONTROL EFUSE_BLK0 18 1
41 WR_DIS.PIN_POWER_SELECTION EFUSE_BLK0 18 1
42 WR_DIS.FLASH_TYPE EFUSE_BLK0 18 1
43 WR_DIS.FLASH_PAGE_SIZE EFUSE_BLK0 18 1
44 WR_DIS.FLASH_ECC_EN EFUSE_BLK0 18 1
45 WR_DIS.FORCE_SEND_RESUME EFUSE_BLK0 18 1
46 WR_DIS.SECURE_VERSION EFUSE_BLK0 18 1
47 WR_DIS.DIS_USB_OTG_DOWNLOAD_MODE EFUSE_BLK0 19 1
48 WR_DIS.DISABLE_WAFER_VERSION_MAJOR EFUSE_BLK0 19 1
49 WR_DIS.DISABLE_BLK_VERSION_MAJOR EFUSE_BLK0 19 1
50 WR_DIS.BLK1 EFUSE_BLK0 20 1
51 WR_DIS.MAC EFUSE_BLK0 20 1
52 WR_DIS.SPI_PAD_CONFIG_CLK EFUSE_BLK0 20 1
53 WR_DIS.SPI_PAD_CONFIG_Q EFUSE_BLK0 20 1
54 WR_DIS.SPI_PAD_CONFIG_D EFUSE_BLK0 20 1
55 WR_DIS.SPI_PAD_CONFIG_CS EFUSE_BLK0 20 1
56 WR_DIS.SPI_PAD_CONFIG_HD EFUSE_BLK0 20 1
57 WR_DIS.SPI_PAD_CONFIG_WP EFUSE_BLK0 20 1
58 WR_DIS.SPI_PAD_CONFIG_DQS EFUSE_BLK0 20 1
59 WR_DIS.SPI_PAD_CONFIG_D4 EFUSE_BLK0 20 1
60 WR_DIS.SPI_PAD_CONFIG_D5 EFUSE_BLK0 20 1
61 WR_DIS.SPI_PAD_CONFIG_D6 EFUSE_BLK0 20 1
62 WR_DIS.SPI_PAD_CONFIG_D7 EFUSE_BLK0 20 1
63 WR_DIS.WAFER_VERSION_MINOR_LO EFUSE_BLK0 20 1
64 WR_DIS.PKG_VERSION EFUSE_BLK0 20 1
65 WR_DIS.BLK_VERSION_MINOR EFUSE_BLK0 20 1
66 WR_DIS.FLASH_CAP EFUSE_BLK0 20 1
67 WR_DIS.FLASH_TEMP EFUSE_BLK0 20 1
68 WR_DIS.FLASH_VENDOR EFUSE_BLK0 20 1
69 WR_DIS.PSRAM_CAP EFUSE_BLK0 20 1
70 WR_DIS.PSRAM_TEMP EFUSE_BLK0 20 1
71 WR_DIS.PSRAM_VENDOR EFUSE_BLK0 20 1
72 WR_DIS.K_RTC_LDO EFUSE_BLK0 20 1
73 WR_DIS.K_DIG_LDO EFUSE_BLK0 20 1
74 WR_DIS.V_RTC_DBIAS20 EFUSE_BLK0 20 1
75 WR_DIS.V_DIG_DBIAS20 EFUSE_BLK0 20 1
76 WR_DIS.DIG_DBIAS_HVT EFUSE_BLK0 20 1
77 WR_DIS.WAFER_VERSION_MINOR_HI EFUSE_BLK0 20 1
78 WR_DIS.WAFER_VERSION_MAJOR EFUSE_BLK0 20 1
79 WR_DIS.ADC2_CAL_VOL_ATTEN3 EFUSE_BLK0 20 1
80 WR_DIS.SYS_DATA_PART1 EFUSE_BLK0 21 1
81 WR_DIS.OPTIONAL_UNIQUE_ID EFUSE_BLK0 21 1
82 WR_DIS.BLK_VERSION_MAJOR EFUSE_BLK0 21 1
83 WR_DIS.TEMP_CALIB EFUSE_BLK0 21 1
84 WR_DIS.OCODE EFUSE_BLK0 21 1
85 WR_DIS.ADC1_INIT_CODE_ATTEN0 EFUSE_BLK0 21 1
86 WR_DIS.ADC1_INIT_CODE_ATTEN1 EFUSE_BLK0 21 1
87 WR_DIS.ADC1_INIT_CODE_ATTEN2 EFUSE_BLK0 21 1
88 WR_DIS.ADC1_INIT_CODE_ATTEN3 EFUSE_BLK0 21 1
89 WR_DIS.ADC2_INIT_CODE_ATTEN0 EFUSE_BLK0 21 1
90 WR_DIS.ADC2_INIT_CODE_ATTEN1 EFUSE_BLK0 21 1
91 WR_DIS.ADC2_INIT_CODE_ATTEN2 EFUSE_BLK0 21 1
92 WR_DIS.ADC2_INIT_CODE_ATTEN3 EFUSE_BLK0 21 1
93 WR_DIS.ADC1_CAL_VOL_ATTEN0 EFUSE_BLK0 21 1
94 WR_DIS.ADC1_CAL_VOL_ATTEN1 EFUSE_BLK0 21 1
95 WR_DIS.ADC1_CAL_VOL_ATTEN2 EFUSE_BLK0 21 1
96 WR_DIS.ADC1_CAL_VOL_ATTEN3 EFUSE_BLK0 21 1
97 WR_DIS.ADC2_CAL_VOL_ATTEN0 EFUSE_BLK0 21 1
98 WR_DIS.ADC2_CAL_VOL_ATTEN1 EFUSE_BLK0 21 1
99 WR_DIS.ADC2_CAL_VOL_ATTEN2 EFUSE_BLK0 21 1
100 WR_DIS.BLOCK_USR_DATA EFUSE_BLK0 22 1
101 WR_DIS.CUSTOM_MAC EFUSE_BLK0 22 1
102 WR_DIS.BLOCK_KEY0 EFUSE_BLK0 23 1
103 WR_DIS.BLOCK_KEY1 EFUSE_BLK0 24 1
104 WR_DIS.BLOCK_KEY2 EFUSE_BLK0 25 1
105 WR_DIS.BLOCK_KEY3 EFUSE_BLK0 26 1
106 WR_DIS.BLOCK_KEY4 EFUSE_BLK0 27 1
107 WR_DIS.BLOCK_KEY5 EFUSE_BLK0 28 1
108 WR_DIS.BLOCK_SYS_DATA2 EFUSE_BLK0 29 1
109 WR_DIS.USB_EXCHG_PINS EFUSE_BLK0 30 1
110 WR_DIS.USB_EXT_PHY_ENABLE EFUSE_BLK0 30 1
111 WR_DIS.SOFT_DIS_JTAG EFUSE_BLK0 31 1
112 RD_DIS EFUSE_BLK0 32 7
113 RD_DIS.BLOCK_KEY0 EFUSE_BLK0 32 1
114 RD_DIS.BLOCK_KEY1 EFUSE_BLK0 33 1
115 RD_DIS.BLOCK_KEY2 EFUSE_BLK0 34 1
116 RD_DIS.BLOCK_KEY3 EFUSE_BLK0 35 1
117 RD_DIS.BLOCK_KEY4 EFUSE_BLK0 36 1
118 RD_DIS.BLOCK_KEY5 EFUSE_BLK0 37 1
119 RD_DIS.BLOCK_SYS_DATA2 EFUSE_BLK0 38 1
120 DIS_ICACHE EFUSE_BLK0 40 1
121 DIS_DCACHE EFUSE_BLK0 41 1
122 DIS_DOWNLOAD_ICACHE EFUSE_BLK0 42 1
123 DIS_DOWNLOAD_DCACHE EFUSE_BLK0 43 1
124 DIS_FORCE_DOWNLOAD EFUSE_BLK0 44 1
125 DIS_USB_OTG EFUSE_BLK0 45 1
126 DIS_TWAI EFUSE_BLK0 46 1
127 DIS_APP_CPU EFUSE_BLK0 47 1
128 SOFT_DIS_JTAG EFUSE_BLK0 48 3
129 DIS_PAD_JTAG EFUSE_BLK0 51 1
130 DIS_DOWNLOAD_MANUAL_ENCRYPT EFUSE_BLK0 52 1
131 USB_EXCHG_PINS EFUSE_BLK0 57 1
132 USB_EXT_PHY_ENABLE EFUSE_BLK0 58 1
133 VDD_SPI_XPD EFUSE_BLK0 68 1
134 VDD_SPI_TIEH EFUSE_BLK0 69 1
135 VDD_SPI_FORCE EFUSE_BLK0 70 1
136 WDT_DELAY_SEL EFUSE_BLK0 80 2
137 SPI_BOOT_CRYPT_CNT EFUSE_BLK0 82 3
138 SECURE_BOOT_KEY_REVOKE0 EFUSE_BLK0 85 1
139 SECURE_BOOT_KEY_REVOKE1 EFUSE_BLK0 86 1
140 SECURE_BOOT_KEY_REVOKE2 EFUSE_BLK0 87 1
141 KEY_PURPOSE_0 EFUSE_BLK0 88 4
142 KEY_PURPOSE_1 EFUSE_BLK0 92 4
143 KEY_PURPOSE_2 EFUSE_BLK0 96 4
144 KEY_PURPOSE_3 EFUSE_BLK0 100 4
145 KEY_PURPOSE_4 EFUSE_BLK0 104 4
146 KEY_PURPOSE_5 EFUSE_BLK0 108 4
147 SECURE_BOOT_EN EFUSE_BLK0 116 1
148 SECURE_BOOT_AGGRESSIVE_REVOKE EFUSE_BLK0 117 1
149 DIS_USB_JTAG EFUSE_BLK0 118 1
150 DIS_USB_SERIAL_JTAG EFUSE_BLK0 119 1
151 STRAP_JTAG_SEL EFUSE_BLK0 120 1
152 USB_PHY_SEL EFUSE_BLK0 121 1
153 FLASH_TPUW EFUSE_BLK0 124 4
154 DIS_DOWNLOAD_MODE EFUSE_BLK0 128 1
155 DIS_DIRECT_BOOT EFUSE_BLK0 129 1
156 DIS_USB_SERIAL_JTAG_ROM_PRINT EFUSE_BLK0 130 1
157 FLASH_ECC_MODE EFUSE_BLK0 131 1
158 DIS_USB_SERIAL_JTAG_DOWNLOAD_MODE EFUSE_BLK0 132 1
159 ENABLE_SECURITY_DOWNLOAD EFUSE_BLK0 133 1
160 UART_PRINT_CONTROL EFUSE_BLK0 134 2
161 PIN_POWER_SELECTION EFUSE_BLK0 136 1
162 FLASH_TYPE EFUSE_BLK0 137 1
163 FLASH_PAGE_SIZE EFUSE_BLK0 138 2
164 FLASH_ECC_EN EFUSE_BLK0 140 1
165 FORCE_SEND_RESUME EFUSE_BLK0 141 1
166 SECURE_VERSION EFUSE_BLK0 142 16
167 DIS_USB_OTG_DOWNLOAD_MODE EFUSE_BLK0 159 1
168 DISABLE_WAFER_VERSION_MAJOR EFUSE_BLK0 160 1
169 DISABLE_BLK_VERSION_MAJOR EFUSE_BLK0 161 1
170 MAC EFUSE_BLK1 0 8
171 MAC EFUSE_BLK1 8 8
172 MAC EFUSE_BLK1 16 8
173 MAC EFUSE_BLK1 24 8
174 MAC EFUSE_BLK1 32 8
175 MAC EFUSE_BLK1 40 8
176 SPI_PAD_CONFIG_CLK EFUSE_BLK1 48 6
177 SPI_PAD_CONFIG_Q EFUSE_BLK1 54 6
178 SPI_PAD_CONFIG_D EFUSE_BLK1 60 6
179 SPI_PAD_CONFIG_CS EFUSE_BLK1 66 6
180 SPI_PAD_CONFIG_HD EFUSE_BLK1 72 6
181 SPI_PAD_CONFIG_WP EFUSE_BLK1 78 6
182 SPI_PAD_CONFIG_DQS EFUSE_BLK1 84 6
183 SPI_PAD_CONFIG_D4 EFUSE_BLK1 90 6
184 SPI_PAD_CONFIG_D5 EFUSE_BLK1 96 6
185 SPI_PAD_CONFIG_D6 EFUSE_BLK1 102 6
186 SPI_PAD_CONFIG_D7 EFUSE_BLK1 108 6
187 WAFER_VERSION_MINOR_LO EFUSE_BLK1 114 3
188 PKG_VERSION EFUSE_BLK1 117 3
189 BLK_VERSION_MINOR EFUSE_BLK1 120 3
190 FLASH_CAP EFUSE_BLK1 123 3
191 FLASH_TEMP EFUSE_BLK1 126 2
192 FLASH_VENDOR EFUSE_BLK1 128 3
193 PSRAM_CAP EFUSE_BLK1 131 2
194 PSRAM_TEMP EFUSE_BLK1 133 2
195 PSRAM_VENDOR EFUSE_BLK1 135 2
196 K_RTC_LDO EFUSE_BLK1 141 7
197 K_DIG_LDO EFUSE_BLK1 148 7
198 V_RTC_DBIAS20 EFUSE_BLK1 155 8
199 V_DIG_DBIAS20 EFUSE_BLK1 163 8
200 DIG_DBIAS_HVT EFUSE_BLK1 171 5
201 WAFER_VERSION_MINOR_HI EFUSE_BLK1 183 1
202 WAFER_VERSION_MAJOR EFUSE_BLK1 184 2
203 ADC2_CAL_VOL_ATTEN3 EFUSE_BLK1 186 6
204 SYS_DATA_PART2 EFUSE_BLK10 0 256
205 OPTIONAL_UNIQUE_ID EFUSE_BLK2 0 128
206 BLK_VERSION_MAJOR EFUSE_BLK2 128 2
207 TEMP_CALIB EFUSE_BLK2 132 9
208 OCODE EFUSE_BLK2 141 8
209 ADC1_INIT_CODE_ATTEN0 EFUSE_BLK2 149 8
210 ADC1_INIT_CODE_ATTEN1 EFUSE_BLK2 157 6
211 ADC1_INIT_CODE_ATTEN2 EFUSE_BLK2 163 6
212 ADC1_INIT_CODE_ATTEN3 EFUSE_BLK2 169 6
213 ADC2_INIT_CODE_ATTEN0 EFUSE_BLK2 175 8
214 ADC2_INIT_CODE_ATTEN1 EFUSE_BLK2 183 6
215 ADC2_INIT_CODE_ATTEN2 EFUSE_BLK2 189 6
216 ADC2_INIT_CODE_ATTEN3 EFUSE_BLK2 195 6
217 ADC1_CAL_VOL_ATTEN0 EFUSE_BLK2 201 8
218 ADC1_CAL_VOL_ATTEN1 EFUSE_BLK2 209 8
219 ADC1_CAL_VOL_ATTEN2 EFUSE_BLK2 217 8
220 ADC1_CAL_VOL_ATTEN3 EFUSE_BLK2 225 8
221 ADC2_CAL_VOL_ATTEN0 EFUSE_BLK2 233 8
222 ADC2_CAL_VOL_ATTEN1 EFUSE_BLK2 241 7
223 ADC2_CAL_VOL_ATTEN2 EFUSE_BLK2 248 7
224 USER_DATA EFUSE_BLK3 0 256
225 USER_DATA.MAC_CUSTOM EFUSE_BLK3 200 48
226 KEY0 EFUSE_BLK4 0 256
227 KEY1 EFUSE_BLK5 0 256
228 KEY2 EFUSE_BLK6 0 256
229 KEY3 EFUSE_BLK7 0 256
230 KEY4 EFUSE_BLK8 0 256
231 KEY5 EFUSE_BLK9 0 256
Used bits in efuse table:
EFUSE_BLK0
[0 31] [0 0] [2 2] [2 2] [2 2] [2 2] [2 2] [2 2] [2 2] [2 2] [2 2] [2 2] [2 2] [2 2] [2 2]
[2 3] [3 3] [3 3] [3 13] [15 16] [18 18] [18 18] [18 18] [18 18] [18 18] [18 18] [18 18]
[18 18] [18 18] [18 18] [18 18] [18 18] [18 18] [18 19] [19 19] [19 20] [20 20] [20 20]
[20 20] [20 20] [20 20] [20 20] [20 20] [20 20] [20 20] [20 20] [20 20] [20 20] [20 20]
[20 20] [20 20] [20 20] [20 20] [20 20] [20 20] [20 20] [20 20] [20 20] [20 20] [20 20]
[20 20] [20 20] [20 20] [20 20] [20 21] [21 21] [21 21] [21 21] [21 21] [21 21] [21 21]
[21 21] [21 21] [21 21] [21 21] [21 21] [21 21] [21 21] [21 21] [21 21] [21 21] [21 21]
[21 21] [21 22] [22 30] [30 38] [32 38] [40 52] [57 58] [68 70] [80 111] [116 121] [124 157]
[159 161]
EFUSE_BLK1
[0 136] [141 175] [183 191]
EFUSE_BLK10
[0 255]
EFUSE_BLK2
[0 129] [132 254]
EFUSE_BLK3
[0 255] [200 247]
EFUSE_BLK4
[0 255]
EFUSE_BLK5
[0 255]
EFUSE_BLK6
[0 255]
EFUSE_BLK7
[0 255]
EFUSE_BLK8
[0 255]
EFUSE_BLK9
[0 255]
Note: Not printed ranges are free for using. (bits in EFUSE_BLK0 are reserved for Espressif)
▶ size-components
: 각각의 컴퍼넌트 크기 정보 표시
더보기
$ idf.py size-components
Executing action: size-components
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja all"...
[1/4] cd /home/xxx/Project/esp32/myApp1/myApp1/build/myApp1.bin
myApp1.bin binary size 0xfc3d0 bytes.
Smallest app partition is 0x180000 bytes. 0x83c30 bytes (34%) free.
[1/1] cd /home/xxx/Project/esp32/myApp1/build/bootloader/bootloader.bin
Bootloader binary size 0x5430 bytes.
0x2bd0 bytes (34%) free.
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja size-components"...
[0/1] cd /home/xxx/Project/esp32/myApp1/build && /usr/bin/cmake
-D "IDF_SIZE_TOOL=/..../python_env/idf5.2_py3.10_env/bin/python;-m;esp_idf_size"
-D IDF_SIZE_MODE=--archives
-D MAP_FILE=/home/xxx/Project/esp32/myApp1/build/myApp1.map
-D OUTPUT_JSON= -P /home/xxx/esp/esp-idf/tools/cmake/run_size_tool.cmake
Total sizes:
Used stat D/IRAM: 102472 bytes ( 349640 remain, 22.7% used)
.data size: 9464 bytes
.bss size: 19912 bytes
.text size: 73096 bytes
Used Flash size : 950510 bytes
.text: 758926 bytes
.rodata: 188744 bytes
Total image size: 1033070 bytes (.bin may be padded larger)
Per-archive contributions to ELF file:
Archive File DRAM .data & 0.bss .eh_frame IRAM0 .text ram_st_total Flash .text & .rodata & .appdesc flash_total
libbt.a 142 13963 0 3192 17297 371096 19991 0 394421
libble_app.a 139 529 0 15260 15928 166810 6796 0 189005
libpthread.a 0 12 0 0 12 1254 117256 0 118510
libmbedcrypto.a 156 200 0 86 442 43780 30754 0 74776
libspiffs.a 0 12 0 0 12 33526 321 0 33847
libesp_hw_support.a 3159 124 0 7040 10323 18682 1632 0 30513
libphy.a 899 44 0 4272 5215 19520 0 0 24691
libdriver.a 68 13 0 0 81 17178 1034 0 18280
libhal.a 338 12 0 7536 7886 7344 367 0 15585
libnvs_flash.a 0 24 0 0 24 14940 248 0 15188
libfreertos.a 88 2240 0 12146 14474 800 1102 0 14136
libmain.a 1023 1095 0 0 2118 12480 531 0 14034
libesp_system.a 92 134 0 2042 2268 7912 443 0 10489
libvfs.a 304 72 0 0 376 9406 633 0 10343
libspi_flash.a 783 14 0 7798 8595 1042 355 0 9978
libstdc++.a 12 49 2580 0 61 3514 553 0 6659
libc.a 260 320 0 0 580 5724 257 0 6241
libesp_ringbuf.a 0 0 0 5334 5334 0 557 0 5891
libcoexist.a 1372 62 0 0 1434 3296 40 0 4708
libbtbb.a 0 0 0 0 0 4702 0 0 4702
libnewlib.a 156 200 0 1822 2178 1478 95 0 3551
libheap.a 12 8 0 1052 1072 2024 405 0 3493
libesp_mm.a 4 44 0 354 402 2948 166 0 3472
libesp_timer.a 16 36 0 1682 1734 1684 82 0 3464
libesp_phy.a 0 33 0 56 89 2702 284 0 3042
libesp_partition.a 0 8 0 0 8 2010 168 0 2178
libesp_common.a 0 0 0 0 0 58 1734 0 1792
libefuse.a 48 4 0 0 52 1196 177 0 1421
libesp_rom.a 0 0 0 1324 1324 0 45 0 1369
liblog.a 8 272 0 262 542 1044 21 0 1335
libsoc.a 0 0 0 268 268 0 880 0 1148
libriscv.a 0 256 0 764 1020 130 50 0 944
libbootloader_support.a 0 0 0 706 706 52 40 0 798
libesp_app_format.a 0 17 0 0 17 202 4 256 462
libesp_coex.a 72 0 0 98 170 124 0 0 294
libapp_update.a 0 4 0 0 4 196 30 0 226
libcxx.a 0 0 0 0 0 54 0 0 54
libnvs_sec_provider.a 0 0 0 0 0 2 0 0 2
libgcc.a 0 0 0 0 0 0 0 0 0
▶ size-files
: 각각의 소스파일 크기정보 출력
더보기
e$ idf.py size-files
Executing action: size-files
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja all"...
[1/4] cd /home/xxx/Project/esp32/uc5...32/myApp1/build/myApp1.bin
myApp1.bin binary size 0xfc3d0 bytes. Smallest app partition is 0x180000 bytes.
0x83c30 bytes (34%) free.
[1/1] cd /home/xxx/Project/esp32/myApp1/build/bootloader/bootloader.bin
Bootloader binary size 0x5430 bytes. 0x2bd0 bytes (34%) free.
Running ninja in directory /home/xxx/Project/esp32/myApp1/build
Executing "ninja size-files"...
[0/1] cd /home/xx/Project/esp32/myApp1/build && /usr/bin/cmake
-D "IDF_SIZE_TOOL=/....../python_env/idf5.2_py3.10_env/bin/python;-m;esp_idf_size"
-D IDF_SIZE_MODE=--files
-D MAP_FILE=/home/xxx/Project/esp32/myApp1/build/myApp1.map
-D OUTPUT_JSON= -P /home/xxx/esp/esp-idf/tools/cmake/run_size_tool.cmake
Total sizes:
Used stat D/IRAM: 102472 bytes ( 349640 remain, 22.7% used)
.data size: 9464 bytes
.bss size: 19912 bytes
.text size: 73096 bytes
Used Flash size : 950510 bytes
.text: 758926 bytes
.rodata: 188744 bytes
Total image size: 1033070 bytes (.bin may be padded larger)
Per-file contributions to ELF file:
Object File DRAM .data & 0.bss .eh_frame IRAM0 .text ram_st_total Flash .text & .rodata & .appdesc flash_total
pthread.c.obj 0 8 0 0 8 626 117210 0 117836
ecp_curves.c.obj 28 0 0 0 28 5738 29512 0 35278
ble_lll_adv.c.o 4 0 0 0 4 24190 1037 0 25231
btm_ble_gap.c.obj 0 50 0 0 50 17026 537 0 17563
bta_dm_act.c.obj 0 0 0 0 0 16118 1140 0 17258
btm_sec.c.obj 0 0 0 0 0 15026 159 0 15185
btc_gap_ble.c.obj 0 96 0 0 96 12324 1678 0 14002
ble_lll_scan.c.o 0 10 0 1602 1612 11012 421 0 13035
uart.c.obj 32 13 0 0 45 12528 466 0 13026
ble_ll_adv.c.o 0 4 0 0 4 12140 461 0 12601
ble_ll_scan.c.o 0 12 0 374 386 11800 403 0 12577
ble_ll_ctrl.c.o 0 0 0 0 0 11772 294 0 12066
spiffs_nucleus.c.obj 0 0 0 0 0 12052 0 0 12052
btm_ble_5_gap.c.obj 0 225 0 0 225 10464 754 0 11218
ble_lll_conn.c.o 1 0 0 1012 1013 9442 218 0 10673
ble_ll_conn.c.o 0 4 0 70 74 10212 114 0 10396
bta_gattc_act.c.obj 0 0 0 0 0 10196 147 0 10343
btm_ble.c.obj 0 1 0 0 1 9854 195 0 10049
bta_dm_api.c.obj 0 0 0 0 0 9326 660 0 9986
gatt_utils.c.obj 0 52 0 0 52 9630 32 0 9662
gatt_sr.c.obj 0 0 0 0 0 9330 131 0 9461
uc500_cmd_task.c.obj 13 879 0 0 892 9060 58 0 9131
~~ 중략 ~~
del_op.o 0 0 24 0 0 8 0 0 32
esp_memory_utils.c.obj 0 0 0 30 30 0 0 0 30
esp_rom_systimer.c.obj 0 0 0 30 30 0 0 0 30
mpi_periph.c.obj 0 0 0 0 0 0 28 0 28
del_ops.o 0 0 24 0 0 4 0 0 28
del_opvs.o 0 0 24 0 0 4 0 0 28
eh_exception.o 0 0 24 0 0 2 0 0 26
new_opv.o 0 0 24 0 0 2 0 0 26
libc_a-sysunlink.o 0 0 0 0 0 24 0 0 24
esp_gpio_reserve.c.obj 0 8 0 24 32 0 0 0 24
systimer.c.obj 0 0 0 24 24 0 0 0 24
ext_mem_layout.c.obj 0 0 0 0 0 0 24 0 24
esp_timer_impl_common.c. 16 0 0 8 24 0 0 0 24
esp_aes_gdma_impl.c.obj 0 0 0 0 0 24 0 0 24
bootloader_mem.c.obj 0 0 0 0 0 20 0 0 20
libc_a-errno.o 0 0 0 0 0 18 0 0 18
esp_sha_gdma_impl.c.obj 0 0 0 0 0 18 0 0 18
hash_functions.c.obj 0 0 0 0 0 16 0 0 16
flash_encrypt.c.obj 0 0 0 14 14 0 0 0 14
bta_gatt_common.c.obj 0 0 0 0 0 14 0 0 14
spi_flash_chip_drivers.c 12 0 0 0 12 0 0 0 12
esp_system_chip.c.obj 0 0 0 8 8 0 0 0 8
pthread.c.obj 0 0 0 0 0 6 0 0 6
os_cputime_pwr2.c.o 0 0 0 4 4 0 0 0 4
libc_a-environ.o 4 4 0 0 8 0 0 0 4
spi_bus_lock.c.obj 0 0 0 0 0 0 4 0 4
rtc_module.c.obj 0 0 0 4 4 0 0 0 4
eh_term_handler.o 4 0 0 0 4 0 0 0 4
eh_unex_handler.o 4 0 0 0 4 0 0 0 4
cxx_guards.cpp.obj 0 0 0 0 0 2 0 0 2
ubsan.c.obj 0 0 0 2 2 0 0 0 2
nvs_sec_provider.c.obj 0 0 0 0 0 2 0 0 2
pthread_cond_var.c.obj 0 0 0 0 0 2 0 0 2
pthread_rwlock.c.obj 0 0 0 0 0 2 0 0 2
pthread_semaphore.c.obj 0 0 0 0 0 2 0 0 2
stub_funcs.c.o 0 12 0 0 12 0 0 0 0
_divdi3.o 0 0 0 0 0 0 0 0 0
_moddi3.o 0 0 0 0 0 0 0 0 0
_udivdi3.o 0 0 0 0 0 0 0 0 0
_umoddi3.o 0 0 0 0 0 0 0 0 0
bad_array_new.o 0 0 0 0 0 0 0 0 0
bad_cast.o 0 0 0 0 0 0 0 0 0
bad_typeid.o 0 0 0 0 0 0 0 0 0
random.o 0 0 0 0 0 0 0 0 0
sso_string.o 0 0 0 0 0 0 0 0 0
string-inst.o 0 0 0 0 0 0 0 0 0
< 기타 >
▶ idf.py build 에러
: esp-idf 5.1.2 에서 5.2 업그레이드 후 발생
$ idf.py build
Executing action: all (aliases: build)
'/home/xxx/.espressif/python_env/idf5.2_py3.10_env/bin/python'
is currently active in the environment while the project was configured with
'/home/xxx/.espressif/python_env/idf5.1_py3.10_env/bin/python'.
Run 'idf.py fullclean' to start again.
$ idf.py fullclean
>> 이후정상
▶ 옵션
-p PORT
: flash / monitor 명령이 실행될 포트 지정
$ idf.py flash -p /dev/ttyUSBx
-D
idf.py -D SDKCONFIG_DEFAULTS="sdkconfig.defaults.zb_gw_board" set-target esp32s3 build반응형
